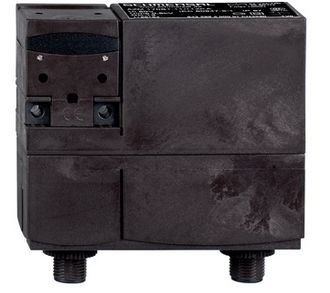

Schmersal AZM 170ST-12/11ZRKA 24VAC/DC safety locking device 101186198

The AZM 170ST-12/11ZRKA 24VAC/DC safety switch provides a reliable and versatile solution for safety applications. Its high holding force and multiple safety and auxiliary contacts make it ideal for sliding, removable, or rotating safety devices. The robust glass-fiber-reinforced housing ensures durability and secure operation.

Technical Data:

Product Designation:

• AZM 170ST-12/11ZRKA 24VAC/DC

Article Number:

• 101186198

EAN:

• 4030661333465

eCl@ss Numbers:

• Version 12.0: 27-27-26-03
• Version 11.0: 27-27-26-03
• Version 9.0: 27-27-26-03

ETIM Numbers:

• Version 7.0: EC002593
• Version 6.0: EC002593

Approvals - Standards:

• Certificates: IFA, cULus, CCC

General Data:

• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
• Coding Level per EN ISO 14119: Low
• Operating Principle: Electromechanical
• Housing Material: Glass-fiber-reinforced thermoplastic
• Gross Weight: 301 g

Features:

• Current Principle: Yes
• Number of Approach Directions: 2
• Number of Auxiliary Contacts: 2
• Number of Safety Contacts: 3

Safety Considerations:

• Standards: EN ISO 13849-1
• Performance Level: Up to c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
Note: Electrical service life available upon request.

• B10D NO Contacts: 1,000,000 cycles
Note: At 10% Ie and resistive load

• Service Life: 20 years

Error Exclusion:

• Permitted with adequate tamper protection and suitable logic unit (for 2-channel operation)
• Performance Level: Up to d
• Category: 3

Mechanical Data:

• Mechanical Service Life: Minimum 1,000,000 cycles
• Holding Force FZh per EN ISO 14119: 1,000 N
• Maximum Holding Force Fmax: 1,300 N
• Latching Force: 30 N
• Positive Opening Travel: 11 mm
• Positive Opening Force per NC Contact: Minimum 8.5 N
• Minimum Actuation Force: 17 N
• Maximum Actuation Speed: 2 m/s
• Mounting: Screws (2x M5)
• Screw Tightening Torque: 0.7 to 1 Nm (Torx T10)

Connection Technology:

• Connection Type:
- M12 Plug, 4-pin, A-coded
- M12 Plug, 8-pin, A-coded


Dimensions:

• Length: 30 mm
• Width: 90 mm
• Height: 92.5 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -25 to +60 °C
• Storage/Transport Temperature: -25 to +85 °C
• Relative Humidity: Non-condensing, non-icing
• Protection Class: II
• Maximum Installation Altitude: 2,000 m

Insulation Ratings:

• Rated Insulation Voltage Ui: 60 V
• Rated Impulse Withstand Voltage Uimp: 0.8 kV
• Overvoltage Category: III
• Pollution Degree: 3

Electrical Data:

• Thermal Continuous Current: 2 A
• Rated Control Supply Voltage: 24 VAC/DC
• Conditional Short-Circuit Current: 1,000 A
• Maximum Power Consumption: 12 W
• Switching Element: Magnet: 1 NO, 2 NC / Actuator: 1 NO, 1 NC
• Note: Changeover with double break Zb or 2 NC, galvanically isolated bridges
• Switching Principle: Slow-action switching, positive-opening NC contacts
• Maximum Switching Frequency: 1,000/h
• Contact Material: Silver

Safety Contacts:

Voltage, DC-13: 24 VDC

Current, DC-13: 2 A

Auxiliary Contacts:

Voltage, AC-15: 230 VAC

Current, AC-15: 4 A

Voltage, DC-13: 24 VDC

Current, DC-13: 2 A

Other Data:

Applications: Sliding, removable, and rotating safety devices

Included in Delivery:

Cover plugs

Note: The actuator is not included in the delivery.

Additional Information (Manual Unlock):

Unlocking with M5 triangle key (available separately)

Type: AZM 170ST-12/11ZRKA 24VAC/DC
