Schmersal NHS40 main switch AC23 15kW AC3 11kW toggle gray 101185098

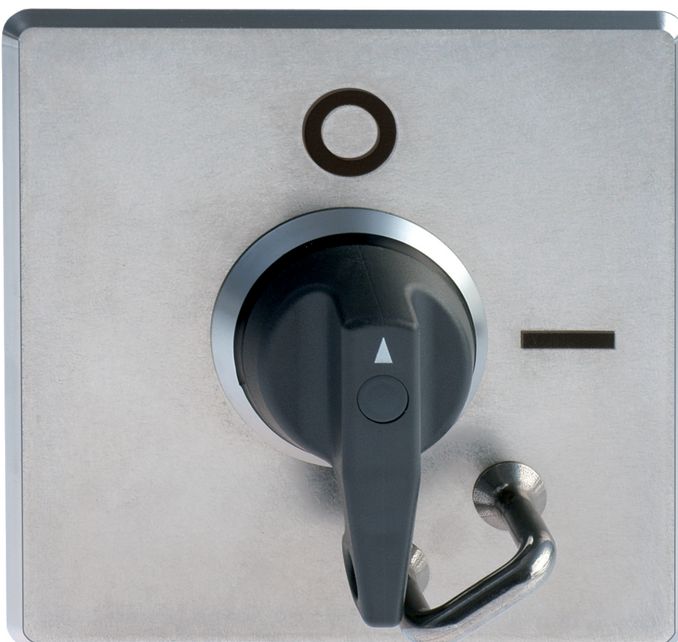

The NHS40 main switch is a high-performance and reliable load isolator switch for industrial applications. With a current capacity of up to 40 A and high switching power, it is ideal for demanding use cases. Part of the H200 product line and H233 series, it is designed as a 3-pole on/off switch for front panel installation. Its robust construction features a long black handle, a chrome-plated bezel, and a stainless steel mounting plate. The NHS40 is highly resistant to dust, water, and high-pressure cleaning, thanks to its IP67 and IP69 protection ratings. With a mechanical lifespan of at least 100,000 cycles and versatile mounting options, it is a durable and flexible solution.

Technical Data:

Product Designation:

• NHS40

Article Number:

• 101185098

EAN:

• 4030661487854

Certifications and Standards:

• Hygiene certified
• EN IEC 60947-5-1, EN IEC 60204-1, DIN EN 1672-2, ANSI/UL 60947-1, ANSI/UL 60947-4-1A

Design:

• Main switch 40 A
• Load isolator switch, 3-pole on/off switch

Construction:

• Reinforcement plate

Materials:

• Nameplate: Stainless steel (V4A)
• Bracket: Stainless steel (V4A)
• Operating Element: Plastic
• Mounting Plate: Stainless steel (V4A)
• Bezel: ABS, chrome-plated

Colors:

• Operating Element: Black
• Nameplate: Silver
• Bracket: Silver
• Contact Element: Black
• Bezel: Silver
• Mounting Plate: Silver
• Sealing Bellows: Black

Gross Weight:

• 650 g

Features:

• Lockable: Yes
• Full Insulation: Yes
• Number of Switching Positions: 1
• Number of Main Contacts: 3

Mechanical Data:

• Release: Rotary release
• Lock Position: Right
• Mechanical Lifespan: min. 100,000 cycles
• Switching Angle: 90° (right)
• Mounting: Screws, max. tightening torque: 1.6 Nm
• Main Contact Position: 0°

Connection Technology:

• Connection Type: Screw terminals
• Connection Cross-section:
- Rigid: 1 mm² to 10 mm²
- Flexible: 0.75 mm² to 6 mm²

• Conductor Cross-section: 8 AWG
• Terminal Tightening Torque: 2.5 Nm

Dimensions:

• Length: 72 mm
• Height: 29 mm
• Installation Height: 37 mm (above the front panel)
• Installation Depth: 85 mm (incl. switch block behind the front panel)
• Mounting Plate: 110 mm x 110 mm
• Operating Head Diameter: 45 mm
• Bezel Diameter: 44.5 mm
• Handle Diameter: 39 mm
• Handle Length: 52 mm
• Mounting Hole Diameter: 22.3 mm
• Front Panel Thickness: 1.5 mm to 6 mm

Environmental Conditions:

• Protection Class: IP67, IP69
• Ambient Temperature: 0 °C to +80 °C
• Shock Resistance: 30 g / 18 ms
• Vibration Resistance: 20 g / 10 ... 150 Hz

Electrical Data:

• Thermal Continuous Current: 40 A
• Rated Operating Voltage: 690 VAC
• Rated Short-circuit Current: 15,000 A
• Switching Capacity, AC-3: 11,000 W
• Switching Capacity, AC-23: 15,000 W
• Switching Principle: Slow-action

Scope of Delivery:

Includes mounting plate and optionally yellow nameplate

Type: NHS40
