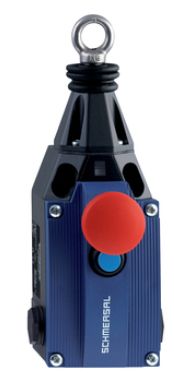

Schmersal ZQ 900-04-N, emergency pull-wire
|
224,40 EUR |
|||||||||||
|
( 267,04 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 119727 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101184477 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101184477:
Product description in English:
The ZQ 900-04N rope pull emergency stop switch is a reliable safety solution for industrial applications. With a maximum rope length of 75 meters and a robust zinc die-cast housing with a painted finish, this switch is ideal for large machines and installations. The thermoplastic housing cover provides additional durability and protection.
Equipped with four safety contacts and an emergency stop button, the switch complies with essential safety standards such as EN ISO 13850 and EN IEC 60947-5-1. Designed for a mechanical lifespan of at least 1 million switching cycles, it ensures reliable operation over 20 years.
The IP65 protection rating allows use in challenging environments with temperatures ranging from -25 °C to +70 °C. Featuring an M20 x 1.5 screw connection and an easy rope tension adjustment mechanism, the switch is user-friendly to install. For long rope lengths, additional rope supports are required to ensure optimal functionality.
Technical specifications:
Ordering information:
- Product designation: ZQ 900-04N
- Article number: 101184477
- EAN: 4030661333694
- eCl@ss number: 27-37-12-01
- ETIM number: EC002033
Approvals and standards:
- Certifications: cULus, CCC
- Standards: EN ISO 13850, EN IEC 60947-5-1, EN IEC 60947-5-5
Mechanical specifications:
- Housing: Metal, zinc die-cast, painted
- Dimensions: Length 97.2 mm, Width 71.5 mm, Height 220.3–236.3 mm
- Lifespan: 1,000,000 switching cycles
- Rope length: max. 75 m
- Connection type: Screw connection M20 x 1.5
Electrical specifications:
- Rated insulation voltage: 500 V
- Thermal continuous current: 6 A
- Voltage (AC-15): 230 VAC, Current: 4 A
- Voltage (DC-13): 24 VDC, Current: 1 A
- Switching elements: Normally closed (NC), Snap-action
Environmental conditions:
- Protection class: IP65
- Ambient temperature: -25 °C to +70 °C
- Relative humidity: max. 95 %
Special features:
- Note: Rope supports required every 2–5 m
- Indicator light (G24-M20) sold separately
Scope of delivery:
- Rope pull emergency stop switch ZQ 900-04N
- Note: Accessories such as ropes and indicator light are not included
Type: ZQ 900-04-N
Questions & answers
What is the delivery time of Schmersal ZQ 900-04-N, emergency pull-wire?
The article Schmersal ZQ 900-04-N, emergency pull-wire is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101184477 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal ZQ 900-04-N, emergency pull-wire always at the best possible price. We can give you a discount of 2% on Schmersal ZQ 900-04-N, emergency pull-wire if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal ZQ 900-04-N, emergency pull-wire we can offer you a price of 221,03 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
