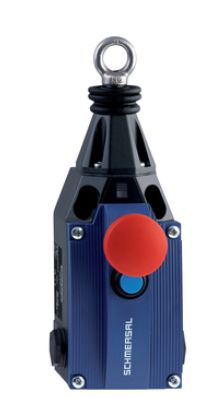

Schmersal ZQ 900-22N cable pull emergency switch 101184475
|
224,40 EUR |
|||||||||||
|
( 267,04 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 475354 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101184475 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101184475:
Order Data:
Product Type:
ZQ 900-22NArticle Number:
101184475EAN (European Article Number):
4030661332802eCl@ss Number, Version 12.0:
27-37-12-01
eCl@ss Number, Version 11.0:
27-37-12-01
eCl@ss Number, Version 9.0:
27-37-12-01
ETIM Number, Version 7.0:
EC002033
ETIM Number, Version 6.0:
EC002033
Approvals - Regulations:
Certificates:
cULus
CCC
General Data:
Regulations:
EN ISO 13850
EN IEC 60947-5-1
EN IEC 60947-5-5
Housing Material:
Metal, Zinc Die-CastHousing Coating Material:
PaintedHousing Cover Material:
Plastic, ThermoplasticRope Length, Maximum:
75 m
Gross Weight:
1,400 gGeneral Data - Features:
Emergency Stop Button:
Yes
Indicator Light:
NoNumber of Auxiliary Contacts:
2Number of Safety Contacts:
2Safety Considerations:
Regulations:
EN ISO 13849-1
Service Life:
20 yearsSafety Consideration - Safety Outputs:
B10D Normally Closed (NC):
100,000 switching cycles
Mechanical Data:
Minimum Mechanical Life:
1,000,000 switching cycles
Mechanical Data - Connection Technology:
Connection Type:
Screw Connection M20 x 1.5
Minimum Conductor Cross-Section:
0.75 mm²Maximum Conductor Cross-Section:
2.5 mm²Note:
All details include ferrules.Mechanical Data - Dimensions:
Sensor Length:
97.2 mm
Sensor Width:
71.5 mmSensor Height, Minimum:
220.3 mm
Sensor Height, Maximum:
236.3 mm
Environmental Conditions:
Protection Class:
IP65
Ambient Temperature:
-25 ... +70 °CMinimum Relative Humidity:
30 %Maximum Relative Humidity:
95 %Environmental Conditions - Insulation Ratings:
Rated Insulation Voltage Ui:
500 V
Rated Impulse Withstand Voltage Uimp:
6 kVElectrical Data:
Thermal Continuous Current:
6 A
Voltage, Utilization Category AC-15:
230 VAC
Current, Utilization Category AC-15:
4 A
Voltage, Utilization Category DC-13:
24 VDC
Current, Utilization Category DC-13:
1 A
Switching Element:
Normally Open (NO), Normally Closed (NC)Switching Principle:
Snap-ActionContact Material, Electrical:
Silver
Type: ZQ900-22-N
Questions & answers
What is the delivery time of Schmersal ZQ 900-22N cable pull emergency switch 101184475?
The article Schmersal ZQ 900-22N cable pull emergency switch 101184475 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101184475 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal ZQ 900-22N cable pull emergency switch 101184475 always at the best possible price. We can give you a discount of 2% on Schmersal ZQ 900-22N cable pull emergency switch 101184475 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal ZQ 900-22N cable pull emergency switch 101184475 we can offer you a price of 221,03 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
