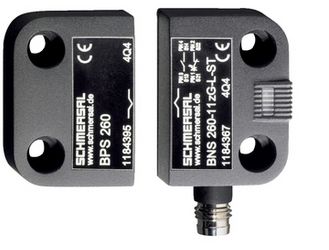

Schmersal BNS 260-11ZG-ST-L safety sensor 101184383

Order Data:

Product Type Designation:
BNS 260-02/01ZG-ST-L

Order Number (Item Number):

101184382

EAN (European Article Number):

4030661321813

eCl@ss Number:

• Version 12.0: 27-27-44-01
• Version 11.0: 27-27-24-02
• Version 9.0: 27-27-24-02

ETIM Number:

• Version 7.0: EC002544
• Version 6.0: EC002544

Approvals - Regulations:

Certificates:

• cULus

General Data:

Regulations:

• BG-GS-ET-14
• EN IEC 60947-5-3

Coding Level according to EN ISO 14119:

Low

Operating Principle:

Magnetic

Installation Conditions (Mechanical):

Quasi-flush

Housing Material:

Plastic, glass fiber-reinforced thermoplastic

Gross Weight:

33 g

General Data - Features:

Coding:
Yes

Integrated Status Indicator:

Yes

Number of NC Contacts:

3

Number of Safety Contacts:

2

Safety Considerations:

Regulations:

• EN ISO 13849-1

Service Life:

20 Years

Safety Considerations - Safety Outputs:

B10D NC Contact:
25,000,000 Operations

B10D Value, NC/NO Contact:
25,000,000 Operations

Mechanical Data:

Actuation Element:
Magnet

Door Hinge Side:

Left

Movement Direction:

Frontal to the active surface

Mechanical Data - Switching Distances according to EN IEC 60947-5-3:

Note (Switching Distance Sn):
Axial misalignment between the safety sensor and actuator is tolerated. The allowable offset depends on the distance between the active surfaces. Within the tolerance range, the sensor remains activated.

Assured Switching Distance ON Sao:

5 mm

Assured Switching Distance OFF Sar:

15 mm

Mechanical Data - Connection Technology:

Connection Type:
Connector 8 mm, 6-pin, snap-lock

Mechanical Data - Dimensions:

Sensor Length:
13 mm

Sensor Width:

26 mm

Sensor Height:

36 mm

Environmental Conditions:

Degree of Protection:
IP67

Ambient Temperature:

-25 ... +70 °C

Storage and Transport Temperature:

-25 ... +70 °C

Vibration Resistance:

10 … 55 Hz, Amplitude 1 mm

Shock Resistance:

30 g / 11 ms

Environmental Conditions - Insulation Characteristics:

Rated Insulation Voltage Ui:
75 VDC

Rated Impulse Withstand Voltage Uimp:

0.8 kV

Electrical Data:

Conditional Rated Short-Circuit Current:
100 A

Maximum Switching Voltage:

24 VDC

Maximum Switching Current:

0.01 A

Maximum Switching Power:

0.24 W

Switching Element:

3 NC Contacts

Maximum Switching Frequency:

5 Hz

Status Indication:

Note (Integrated Status Indicator):
LED lights up when the safety door is closed.

Scope of Delivery:

The actuator is not included.

Accessories:

Recommended Actuator:
BPS 260

Recommended Safety Relay:

• SRB-E-301ST
• SRB-E-201LC

Note:

General Note:
Pin assignment of versions with integrated connector is specified in brackets.

Circuit Diagram:

Note (Circuit Diagram):
Contacts S11-S12 and S21-S22 must be integrated into the safety circuit.
Type: BNS 260-11ZG-ST-L
