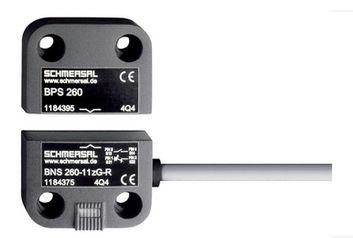

Schmersal BNS 260-11ZG-R safety sensor 101184375

Order Data:

Product Type Designation:
BNS 260-11ZG-R

Order Number (Item Number):

101184375

EAN (European Article Number):

4030661321738

eCl@ss Number:

• Version 12.0: 27-27-44-01
• Version 11.0: 27-27-24-02
• Version 9.0: 27-27-24-02

ETIM Number:

• Version 7.0: EC002544
• Version 6.0: EC002544

Approvals - Regulations:

Certificates:

• cULus

General Data:

Regulations:

• BG-GS-ET-14
• EN IEC 60947-5-3

Coding Level according to EN ISO 14119:

Low

Operating Principle:

Magnetic

Installation Conditions (Mechanical):

Quasi-flush

Housing Material:

Plastic, glass fiber-reinforced thermoplastic

Gross Weight:

60 g

General Data - Features:

Coding:
Yes

Integrated Status Indicator:

Yes

Number of NC Contacts:

1

Number of NO Contacts:

1

Number of Safety Contacts:

2

Number of Conductors:

4

Safety Considerations:

Regulations:

• EN ISO 13849-1

Service Life:

20 Years

Safety Considerations - Safety Outputs:

B10D NC Contact:
25,000,000 Operations

B10D Value, NC/NO Contact:
25,000,000 Operations

Mechanical Data:

Actuation Element:
Magnet

Door Hinge Side:

Right

Movement Direction:

Frontal to the active surface

Mechanical Data - Switching Distances according to EN IEC 60947-5-3:

Note (Switching Distance Sn):
Axial displacement between safety sensor and actuator tolerates horizontal and vertical misalignment. The tolerable misalignment depends on the distance between the active surfaces of the sensor and actuator. Within the tolerance range, the sensor remains activated.

Assured Switching Distance ON Sao:

5 mm

Assured Switching Distance OFF Sar:

15 mm

Mechanical Data - Connection Technology:

Cable Length:
1 m

Connection Type:

Cable

Conductor Cross-Section:

0.25 mm²

Cable Jacket Material:

PVC

Mechanical Data - Dimensions:

Sensor Length:
13 mm

Sensor Width:

26 mm

Sensor Height:

36 mm

Environmental Conditions:

Degree of Protection:
IP67

Ambient Temperature:

-25 ... +70 °C

Storage and Transport Temperature:

-25 ... +70 °C

Vibration Resistance:

10 … 55 Hz, Amplitude 1 mm

Shock Resistance:

30 g / 11 ms

Environmental Conditions - Insulation Characteristics:

Rated Insulation Voltage Ui:
75 VDC

Rated Impulse Withstand Voltage Uimp:

0.8 kV

Electrical Data:

Conditional Rated Short-Circuit Current:
100 A

Maximum Switching Voltage:

24 VDC

Maximum Switching Current:

0.01 A

Maximum Switching Power:

0.24 W

Switching Element:

1 NO Contact, 1 NC Contact

Maximum Switching Frequency:

5 Hz

Status Indication:

Note (Integrated Status Indicator):
LED lights up when the safety door is closed.

Scope of Delivery:

The actuator is not included.

Accessories:

Recommended Actuator:
BPS 260

Recommended Safety Relay:

• SRB-E-301ST
• SRB-E-201LC

Note:

General Note:
Depiction of contact symbols for closed safety devices.

The contact assignments for versions with or without LED are identical.

Circuit Diagram:

Note (Circuit Diagram):
Contacts S13-S14 and S21-S22 must be integrated into the safety circuit.
Type: BNS 260-11ZG-R
