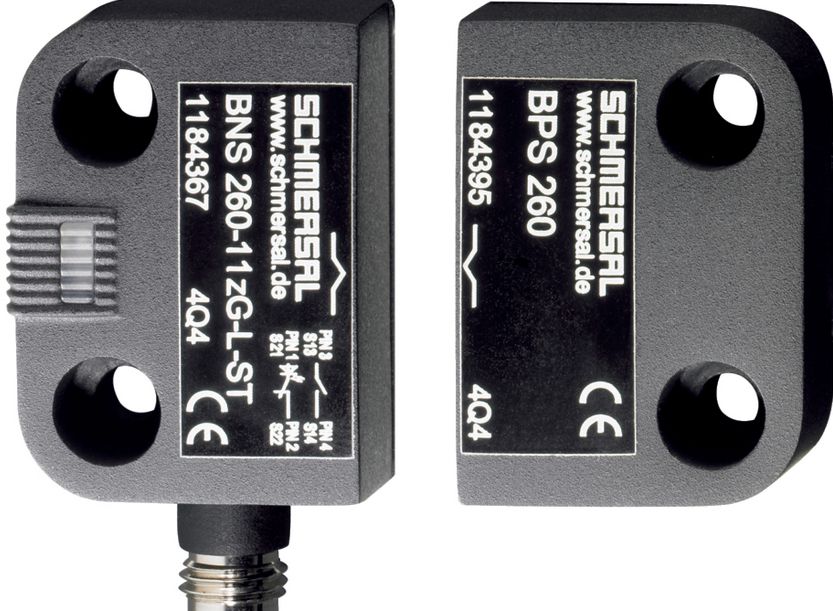

Schmersal 101184367 BNS 260-11ZG-ST-R safety sensor
|
-16% 61,66 EUR 73,04 EUR |
|
|
( 73,38 EUR incl. VAT ) ≈ £51.67 | ≈ $68.63 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1241200 |
|---|---|
| Mfg Part No: | 101184367 |
| UPC/EAN: | 4030661321646 |
| Weight: | 0.123 kg |
| Type: | BNS 260-11ZG-ST-R |
Product information for Schmersal 101184367:
The sensor features one normally closed (NC) and one normally open (NO) contact, optimized for right-hand door hinge applications. With a guaranteed ON switching distance of 5 mm and a maximum switching frequency of 5 Hz, it delivers reliable safety performance. Its durable design ensures a lifespan of up to 25 million switching cycles.
Technical Data:
Ordering Details:
- Product Type: BNS 260-11ZG-ST-R
- Part Number: 101184367
- EAN: 4030661321646
- eCl@ss Number: 27-27-44-01
- ETIM Number: EC002544
General Data:
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
- Coding Level per EN ISO 14119: Low
- Operating Principle: Magnetic
- Housing Material: Glass-fiber-reinforced thermoplastic
- Gross Weight: 18 g
Mechanical Data:
- Actuator Element: Magnet
- Door Hinge: Right
- Movement Direction: Frontal to active surface
- Switching Distances: - Assured Actuation Distance ON (Sao): 5 mm
- Connection Type: M8 connector
- Tightening Torque for Electrical Connection: 0.3 Nm
- Dimensions: - Length: 13 mm
- Max. Switching Voltage: 24 VDC
- Max. Switching Current: 0.01 A
- Max. Switching Power: 0.24 W
- Switching Elements: 1 NC, 1 NO
- Max. Switching Frequency: 5 Hz
- Assured Actuation Distance OFF (Sar): 15 mm
- Width: 26 mm
- Height: 36 mm
Electrical Data:
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 to +70 °C
- Storage and Transport Temperature: -25 to +70 °C
- Vibration Resistance: 10–55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
Included:
- Actuator not included
Accessories:
- Recommended Actuators: BPS 260
- Recommended Safety Relay Devices: SRB-E-301ST, SRB-E-201LC
Special Features:
- Integrated LED status indicator shows the switch status.
- Pin assignments for versions with an integrated connector are specified in parentheses.
- Contacts S13-S14 and S21-S22 must be incorporated into the safety circuit.
