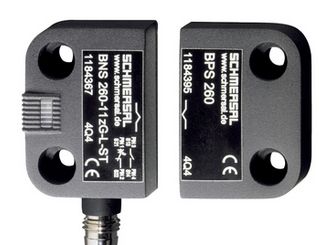

Schmersal 101184361 Safety Sensors, BNS260-02Z-ST-R content_copy

Order Data:

Product Type:

BNS 260-02Z-ST-R

Article Number:

101184361

EAN (European Article Number):

4030661321585

eCl@ss Number, Version 12.0:
27-27-44-01

eCl@ss Number, Version 11.0:
27-27-24-02

eCl@ss Number, Version 9.0:
27-27-24-02

ETIM Number, Version 7.0:
EC002544

ETIM Number, Version 6.0:
EC002544

Approvals - Standards:

Certificates:

• cULus

General Data:

Standards:

• BG-GS-ET-14
• EN IEC 60947-5-3

Coding Level according to EN ISO 14119:

Low

Operating Principle:

Magnetic

Mounting Conditions (Mechanical):

Flush-mounted

Housing Material:

Plastic, glass-fiber reinforced thermoplastic

Gross Weight:

33 g

General Data - Properties:

Coding:
Yes

Number of NC Contacts:

2

Number of Safety Contacts:

2

Safety Considerations:

Standards:

• EN ISO 13849-1

Service Life:

20 years

Safety Considerations - Safety Outputs:

B10D NC Contacts:
25,000,000 operations

B10D Value, NC/NO Contacts:
25,000,000 operations

Mechanical Data:

Actuation Element:
Magnet

Door Hinge:

Right

Motion Direction:

Frontal to the active area

Mechanical Data - Switching Distances according to EN IEC 60947-5-3:

Note (Switching Distance Sn):
Axial offset safety sensor and actuator tolerate a horizontal and vertical offset to each other. The permissible offset depends on the distance of the active surfaces of the sensor and actuator. Within the tolerance range, the sensor is actively switched.

Assured Operating Distance ON Sao:

5 mm

Assured Operating Distance OFF Sar:

15 mm

Mechanical Data - Connection Technology:

Connection Type:
M8 connector

Tightening Torque for Electrical Connection:

0.3 Nm

Mechanical Data - Dimensions:

Sensor Length:
13 mm

Sensor Width:

26 mm

Sensor Height:

36 mm

Environmental Conditions:

Protection Class:
IP67

Operating Temperature:

-25 ... +70 °C

Storage and Transport Temperature:

-25 ... +70 °C

Vibration Resistance:

10 … 55 Hz, Amplitude 1 mm

Shock Resistance:

30 g / 11 ms

Environmental Conditions - Insulation Characteristics:

Rated Insulation Voltage Ui:
50 VAC

Rated Impulse Withstand Voltage Uimp:

0.8 kV

Electrical Data:

Conditional Rated Short-Circuit Current:
100 A

Max. Switching Voltage:

75 VDC

Max. Switching Current:

0.4 A

Max. Switching Power:

10 VA

Switching Element:

2 NC contacts

Max. Switching Frequency:

5 Hz

Scope of Delivery:

Scope of Delivery:
Actuator not included.

Accessories:

Recommended Actuator:
BPS 260

Recommended Safety Control Module:

• SRB-E-301ST
• SRB-E-201LC

Note:

General Note:
Pin assignments for versions with an integrated connector are indicated in parentheses.

Circuit Example:

Note (Circuit Example):
The contacts S11-S12 and S21-S22 must be integrated into the safety circuit.
Type: BNS 260-02Z-ST-R
