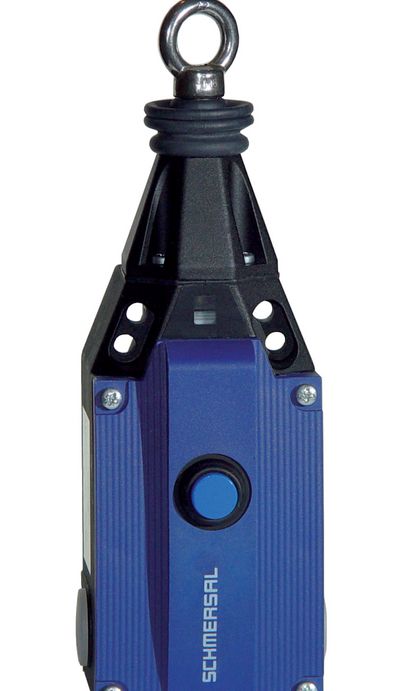

Schmersal ZQ 900-13 cable pull emergency switch 101184332
|
175,19 EUR |
|||||||||||
|
( 208,48 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311676 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101184332 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101184332:
Product Description in English:
The ZQ 900-13 Rope Pull Emergency Stop Switch is a reliable safety switch designed for industrial use, providing an emergency stop function over a maximum rope length of 75 meters. It complies with EN ISO 13850, EN IEC 60947-5-1, and EN IEC 60947-5-5, making it ideal for securing long machine lines.
The housing is made of metal (zinc die-cast) with a painted finish, while the cover is made of thermoplastic. The ZQ 900-13 features three safety contacts and one auxiliary contact. The switching elements are designed as snap-action switches, providing a mechanical lifespan of at least 1 million switching cycles.
With a protection rating of IP65 IP65, the switch is resistant to dust and water and can operate in a temperature range of -25 °C to +70 °C. The electrical connection is made via a screw connection M20 x 1.5, suitable for wire cross-sections from 0.75 mm² to 2.5 mm².
The switch is suitable for AC and DC applications, supporting 230 VAC / 4 A for AC-15 and 24 VDC / 1 A for DC-13.
Technical Data:
Product Type:- ZQ 900-13
Order Number:
- 101184332
EAN:
- 4030661332765
eCl@ss Numbers:
- Version 12.0: 27-37-12-01
- Version 11.0: 27-37-12-01
- Version 9.0: 27-37-12-01
ETIM Numbers:
- Version 7.0: EC002033
- Version 6.0: EC002033
Approvals:
- cULus
- CCC
Standards:
- EN ISO 13850
- EN IEC 60947-5-1
- EN IEC 60947-5-5
Housing Material:
- Metal, zinc die-cast
Housing Coating:
- Painted
Cover Material:
- Plastic, thermoplastic
Maximum Rope Length:
- 75 m
Gross Weight:
- 1,340 g
Features:
- Indicator Light: No
- Number of Auxiliary Contacts: 1
- Number of Safety Contacts: 3
Mechanical Data:
- Mechanical Lifespan, minimum: 1,000,000 switching cycles
Connection Technology:
- Connection Type: Screw connection M20 x 1.5
- Minimum Wire Cross-Section: 0.75 mm²
- Maximum Wire Cross-Section: 2.5 mm²
Dimensions:
Environmental Conditions:
Insulation Ratings:
Electrical Data:
Switching Element:
Switching Principle:
Contact Material:
Notes:
Type: ZQ 900-13
