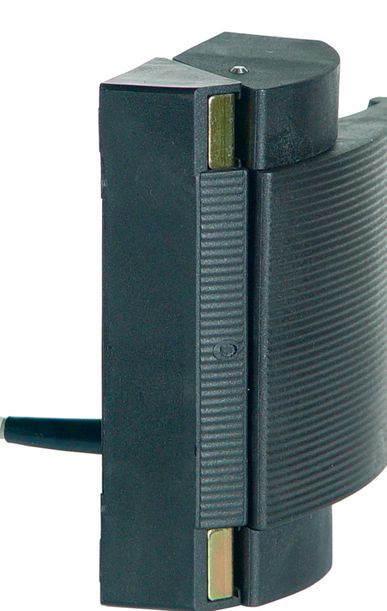

Schmersal BNS-B20-12ZG-H safety sensor 101184134
|
69,52 EUR |
|||||||||||
|
( 82,73 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1241193 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101184134 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101184134:
The integrated LED status indicator allows for easy visual confirmation of the protective door's closed state. Equipped with two safety contacts and one auxiliary contact, the sensor supports up to 25 million switching cycles. Its maximum switching frequency of 5 Hz and a holding force of 100 N make it suitable for a variety of applications, including sliding and swinging doors.
Technical Data:
Ordering Details:
- Product Type: BNS-B20-12ZG-H
- Part Number: 101184134
- EAN: 4030661322070
- eCl@ss Number: 27-27-44-01
- ETIM Number: EC002544
General Data:
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
- Coding Level per EN ISO 14119: Low
- Operating Principle: Magnetic
- Housing Material: Glass-fiber-reinforced thermoplastic
- Gross Weight: 117 g
Mechanical Data:
- Actuator Element: Magnet
- Holding Force: 100 N
- Max. Door Weight (Sliding Door): 3 kg
- Max. Door Weight (Swing Door): 5 kg
- Switching Distances per EN IEC 60947-5-3: - Assured Actuation Distance ON (Sao): 0 mm
- Connection Type: Cable (PVC sheath), rear cable entry, Length: 1 m
- Conductor Cross-Section: 0.25 mm²
- Assured Actuation Distance OFF (Sar): 22 mm
Electrical Data:
- Max. Switching Voltage: 100 VAC / 24 VDC
- Max. Switching Current: 0.01 A
- Max. Switching Power: 0.24 W
- Max. Switching Frequency: 5 Hz
- Switching Elements: 2 NC, 1 NO
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 to +70 °C
- Storage and Transport Temperature: -25 to +70 °C
- Vibration Resistance: 10–55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
Included:
- Actuator not included
Accessories:
- Recommended Actuators: BNS-B20-B01
- Recommended Safety Relay Devices: SRB-E-301ST, SRB-E-201LC
Special Features:
- Integrated LED status indicator lights when the safety door is closed.
- Contact arrangements are identical for models with or without LEDs.
- Protective circuitry is required for loads with high inrush or switch-off spikes.
Type: BNS-B20-12ZG-H
Questions & answers
What is the delivery time of Schmersal BNS-B20-12ZG-H safety sensor 101184134?
The article Schmersal BNS-B20-12ZG-H safety sensor 101184134 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101184134 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS-B20-12ZG-H safety sensor 101184134 always at the best possible price. We can give you a discount of 2% on Schmersal BNS-B20-12ZG-H safety sensor 101184134 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal BNS-B20-12ZG-H safety sensor 101184134 we can offer you a price of 67,43 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
