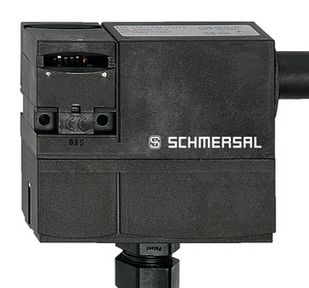

Schmersal AZM 170SK-11/02ZRK-2197 24VAC/DC safety locking device 101183249

Order Details:

• Product Type Designation: AZM 170SK-11/02ZRK-2197 24VAC/DC
• Article Number (Order Number): 101183249
• EAN (European Article Number): 4030661319049
• eCl@ss Number, Version 12.0: 27-27-26-03
• eCl@ss Number, Version 11.0: 27-27-26-03
• eCl@ss Number, Version 9.0: 27-27-26-03
• ETIM Number, Version 7.0: EC002593
• ETIM Number, Version 6.0: EC002593

Approvals - Standards:

• Certificates: IFA, cULus, CCC
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding level according to EN ISO 14119: low
• Operating principle: electromechanical
• Housing material: Plastic, glass fiber-reinforced thermoplastic, self-extinguishing
• Gross weight: 320 g

General Data - Features:

• Current principle: Yes
• Auxiliary release: Yes
• Number of approach directions: 2
• Number of auxiliary contacts: 1
• Number of safety contacts: 3

Safety Considerations:

• Performance Level: up to c
• Category: 1
• B10D NC contact: 2,000,000 operations
• B10D NO contact: 1,000,000 operations (at 10% Ie and resistive load)
• Service life: 20 years

Mechanical Data:

• Mechanical service life, minimum: 1,000,000 operations
• Retaining force FZh according to EN ISO 14119: 1,000 N
• Latching force: 30 N
• Forced opening travel: 11 mm
• Actuation speed, maximum: 2 m/s
• Mounting: Screws (2x M5, tightening torque: 0.7 - 1 Nm, Torx T10)

Mechanical Data - Connection Technology:

• Cable entry: 1 x M20 x 1.5
• Connection type: Screw terminals
• Connection cross-section: 0.25 - 1.5 mm²

Mechanical Data - Dimensions:

• Sensor length: 30 mm
• Sensor width: 108 mm
• Sensor height: 100.5 mm

Environmental Conditions:

• Protection class: IP67
• Operating temperature: -25 ... +60 °C
• Storage and transport temperature: -25 ... +85 °C
• Protection class: II

Electrical Data:

• Rated control supply voltage: 24 VAC/DC
• Maximum electrical power consumption: 12 W
• Switching element: Magnet (1 NO, 1 NC); Actuator (2 NC)
• Switching principle: Slow-action switch with forced opening NC
• Maximum switching frequency: 1,000 /h

Other Data:

• Note (Application Applications): sliding, removable, and rotating protective devices

Scope of Delivery:

• The actuator is not included in the delivery.
• Slot closure
• Note (Auxiliary release): Right and bottom; manual release with triangular key M5 (available as an accessory) or M3 (included).
