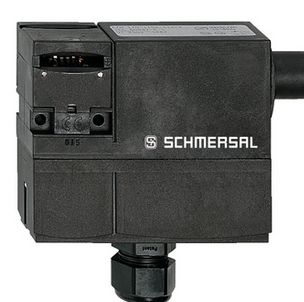

Schmersal AZM 170SK-02/10ZK-2197 24VAC/DC safety locking device 101183243 content_copy

The safety switch AZM 170SK-02/10ZK-2197 24VAC/DC is a versatile and robust solution for safeguarding machinery and personnel. Its housing, made of glass fiber-reinforced thermoplastic, ensures high durability and stability. Operating on the closed-circuit current principle, it offers enhanced safety and features auxiliary release options on the right and bottom. With a holding force of up to 1,300 N and an IP67 protection rating, this switch is ideal for demanding industrial applications. Its mechanical lifespan exceeds 1 million cycles, and it is designed for use with sliding, removable, or rotating safety guards.

Technical Data:

Product Designation:

• AZM 170SK-02/10ZK-2197 24VAC/DC

Article Number:

• 101183243

EAN:

• 4030661319025

Certifications and Standards:

• IFA, cULus, CCC
• EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

Coding Level:

• Low

Operating Principle:

• Electromechanical

Materials:

• Housing: Plastic, glass fiber-reinforced thermoplastic, self-extinguishing

Gross Weight:

• 315 g

Safety Data:

• Performance Level: up to PL c (Category 1)
• Performance Level (with dual-channel use): up to PL d (Category 3)
• Service Life: 20 years

Mechanical Data:

• Holding Force FZh: 1,000 N
• Maximum Holding Force Fmax: 1,300 N
• Positive Opening Travel: 11 mm
• Maximum Actuation Speed: 2 m/s
• Lifespan: min. 1,000,000 cycles

Electrical Data:

• Operating Voltage: 24 VAC/DC
• Electrical Power Consumption: max. 12 W
• Switching Element: 2 NC / 1 NO
• Maximum Switching Frequency: 1,000 /h

Connection Technology:

• Cable Entry: 1 x M20 x 1.5
• Connection Cross-section: 0.25 mm² to 1.5 mm²

Environmental Conditions:

• Protection Class: IP67
• Ambient Temperature: -25 °C to +60 °C

Scope of Delivery:

• Slot cover
• Note: Actuator not included. Auxiliary release with M3 triangular key included; M5 available as accessory.
