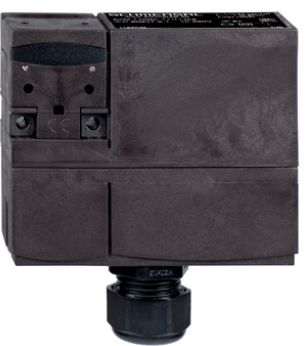

Schmersal AZM 170SK-02/01ZRKA 24VAC/DC safety locking device 101182754

The AZM 170SK-02/01ZRKA 24VAC/DC safety switch ensures high safety standards for monitoring protective devices. Its electromechanical operation and robust fiber-reinforced thermoplastic housing make it ideal for industrial applications. Flexible connection technology and enhanced holding force provide reliable and long-lasting performance.

Technical Data:

Product Designation:

• AZM 170SK-02/01ZRKA 24VAC/DC

Article Number:

• 101182754

EAN:

• 4030661318165

eCl@ss Numbers:

• Version 12.0: 27-27-26-03
• Version 11.0: 27-27-26-03
• Version 9.0: 27-27-26-03

ETIM Numbers:

• Version 7.0: EC002593
• Version 6.0: EC002593

Approvals - Standards:

• Certificates: IFA, cULus, CCC

General Data:

• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
• Coding Level per EN ISO 14119: Low
• Operating Principle: Electromechanical
• Housing Material: Glass-fiber-reinforced thermoplastic
• Gross Weight: 344 g

Features:

• Current Principle: Yes
• Number of Approach Directions: 2
• Number of Safety Contacts: 3

Safety Considerations:

• Standards: EN ISO 13849-1
• Performance Level: Up to c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
Note: Electrical service life available upon request.

• B10D NO Contacts: 1,000,000 cycles
Note: At 10% Ie and resistive load

• Service Life: 20 years

Exclusion of Errors:

• Allowed with adequate tamper protection and suitable logic unit (in 2-channel operation)
• Performance Level: Up to d
• Category: 3

Mechanical Data:

• Mechanical Service Life: Minimum 1,000,000 cycles
• Holding Force FZh per EN ISO 14119: 1,000 N
• Maximum Holding Force Fmax: 1,300 N
• Latching Force: 30 N
• Positive Opening Travel: 11 mm
• Positive Opening Force per NC Contact: Minimum 8.5 N
• Minimum Actuation Force: 17 N
• Maximum Actuation Speed: 2 m/s
• Mounting: Screws (2x M5)
• Screw Tightening Torque: 0.7 to 1 Nm (Torx T10)

Connection Technology:

• Cable Entry: 1 x M20 x 1.5
• Connection Type: Screw Terminals
• Wire Cross Section: 0.25 - 1.5 mm² (incl. ferrules)
• Compatible Wires: Rigid single-strand, rigid multi-strand, flexible

Dimensions:

• Length: 30 mm
• Width: 90 mm
• Height: 100.5 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -25 to +60 °C
• Storage/Transport Temperature: -25 to +85 °C
• Relative Humidity: Non-condensing, non-icing
• Protection Class: II
• Maximum Installation Altitude: 2,000 m

Insulation Ratings:

• Rated Insulation Voltage Ui: 250 VAC
• Rated Impulse Withstand Voltage Uimp: 4 kV
• Overvoltage Category: III
• Pollution Degree: 3

Electrical Data:

Rated Control Supply Voltage: 24 VAC/DC

Conditional Short-Circuit Current: 1,000 A

Max Power Consumption: 12 W

Switching Element: Magnet: 2 NC Contacts / Actuator: 1 NC Contact

Note: Changeover with double break Zb or 2 NC contacts, galvanically isolated bridges

Switching Principle: Slow-action switching, positive-opening NC contacts

Maximum Switching Frequency: 1,000/h

Contact Material: Silver

Safety Contacts:

Voltage, AC-15: 230 VAC

Current, AC-15: 4 A

Voltage, DC-13: 24 VDC

Current, DC-13: 4 A

Auxiliary Contacts:

Voltage, AC-15: 230 VAC

Other Data:

Applications: Sliding, removable, and rotating safety devices

Included in Delivery:

Cover plugs

Note: The actuator is not included in the delivery.

Additional Information (Manual Unlock):

Bottom location

Unlocking with M5 triangle key (available separately)

Type: AZM 170SK-02/01ZRKA 24VAC/DC
