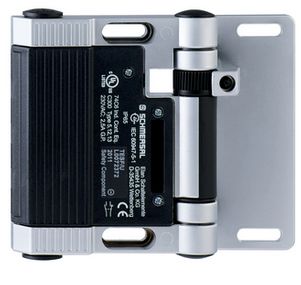

Schmersal TESF/S/CC/0 hinge safety switch 101182707
|
173,68 EUR |
|||||||||||
|
( 206,68 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1326403 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101182707 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101182707:
Product Description in English:
The TESF/S/CC/0 Safety Switch combines robust design with reliable safety functions, making it ideal for outdoor use. Featuring a durable die-cast zinc housing and IP65 protection, the switch is resistant to dust and water jets. This system is perfect for applications requiring integrated safety and auxiliary contacts in a safety device. Its adjustable and standardized angles simplify installation and operation.
Technical Data:
Product Type Designation:
- TESF/S/CC/0
Article Number:
- 101182707
EAN:
- 4030661449005
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-27-06-09
- ETIM Version 7.0: EC002591
Approvals and Standards:
- Certificates: cULus, CCC
- Standards: BG-GS-ET-15, EN IEC 60947-5-1
Material and Weight:
- Housing Material: Metal, die-cast zinc
- Housing Color: Black
- Gross Weight: 616 g
General Features:
- External Mounting Possible: Yes
- Number of Safety Contacts: 2
- Number of Auxiliary Contacts: 2
Safety Data:
- Service Life: 20 years
- B10D NC: 2,000,000 actuations
- B10D NO: 1,000,000 actuations
Mechanical Data:
- Mechanical Lifespan, Minimum: 1,000,000 actuations
- Forced Opening Angle: 10°
- Opening Angle: 180°
- Mounting: Screw terminal M16 x 1.5, spring connection
Dimensions:
- Sensor Length: 21.5 mm
- Sensor Width: 141 mm
- Sensor Height: 115 mm
Electrical Data:
- Thermal Continuous Current: 2.5 A
- Voltage, Utilization Category AC-15: 230 VAC
- Current, Utilization Category AC-15: 2 A
- Voltage, Utilization Category DC-13: 24 VDC
- Current, Utilization Category DC-13: 1 A
Environmental Conditions:
- Protection Class: IP65
- Operating Temperature: -25 ... +65 °C
Insulation Values:
- Rated Insulation Voltage Ui: 250 VAC
- Rated Impulse Withstand Voltage Uimp: 2.5 kV
Note:
- Factory preset switching angle is 3°. Due to normal wear, it may increase to 8°.
Type: TESF/S/CC/0
Questions & answers
What is the delivery time of Schmersal TESF/S/CC/0 hinge safety switch 101182707?
The article Schmersal TESF/S/CC/0 hinge safety switch 101182707 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101182707 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal TESF/S/CC/0 hinge safety switch 101182707 always at the best possible price. We can give you a discount of 2% on Schmersal TESF/S/CC/0 hinge safety switch 101182707 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal TESF/S/CC/0 hinge safety switch 101182707 we can offer you a price of 168,47 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
