Schmersal safety switch TESF / S / U, 101 182 706
|
-13% 140,50 EUR 161,59 EUR |
|
|
( 167,20 EUR incl. VAT ) ≈ £119.43 | ≈ $157.78 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 242443 |
|---|---|
| Mfg Part No: | 101182706 |
| UPC/EAN: | 4030661449098 |
| Weight: | 0.123 kg |
| Type: | TESF/S/U |
Further Safety relay from SchmersalFurther products in category Safety relay
All products of Schmersal
Product information for Schmersal 101182706:

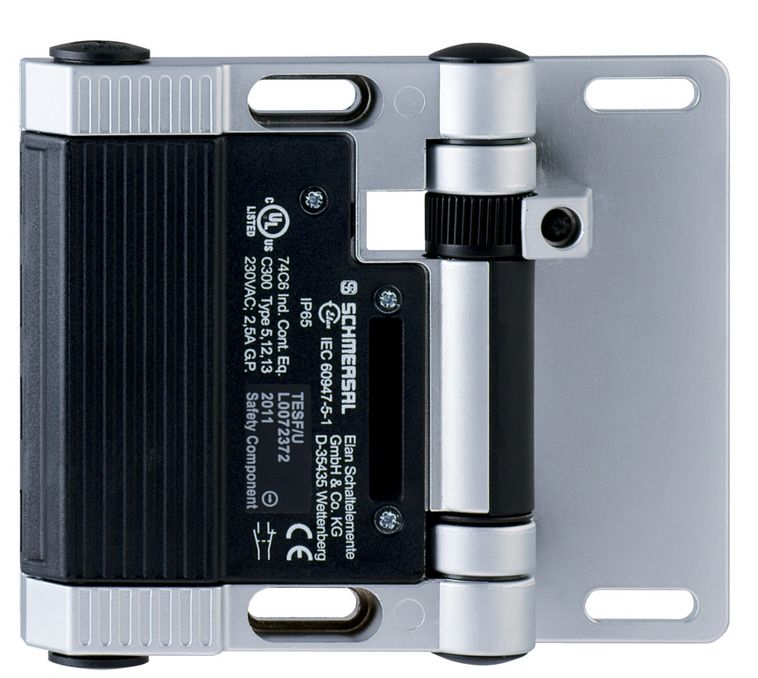

The TESF/S/U is a robust position switch with an adjustable switching angle, designed for demanding industrial applications. Made of durable zinc die-cast metal with a black coating, the housing features an IP65 protection rating, making it ideal for harsh operating conditions. The switch includes two safety contacts and two auxiliary contacts, offering both normally open (NO) and normally closed (NC) functions.
The switching angle is factory-set at 3° and can be adjusted to meet specific requirements. The maximum opening angle is 180°, with a forced opening angle of 10°. Electrical connections are made via two screw terminals, supporting wires with a cross-section of up to 1 mm². With a mechanical lifespan of 1,000,000 operations and a service life of 20 years, the TESF/S/U ensures reliable performance in safety-critical applications.
Note: An adjustment key is included in the scope of delivery.
Ordering Details:
The switching angle is factory-set at 3° and can be adjusted to meet specific requirements. The maximum opening angle is 180°, with a forced opening angle of 10°. Electrical connections are made via two screw terminals, supporting wires with a cross-section of up to 1 mm². With a mechanical lifespan of 1,000,000 operations and a service life of 20 years, the TESF/S/U ensures reliable performance in safety-critical applications.
Note: An adjustment key is included in the scope of delivery.
Technical Data:
Ordering Details:
- Product Type: TESF/S/U
- Part Number: 101182706
- EAN: 4030661449098
- eCl@ss Number: 27-27-06-09
- ETIM Number: EC002591
Approvals:
- Certifications: cULus, CCC
General Data:
- Housing Material: Metal, Zinc Die-Cast
- Housing Color: Black
- Gross Weight: 616 g
Mechanical Properties:
- Adjustable Switching Angle: Yes
- Opening Angle: 180°
- Forced Opening Angle: 10°
- Mechanical Lifespan: min. 1,000,000 operations
Electrical Properties:
- Switching Principle: Snap-action
- Switching Elements: Normally Open (NO), Normally Closed (NC)
- Rated Operating Voltage: 230 VAC / 24 VDC
- Rated Operating Current: 2 A (AC-15) / 1 A (DC-13)
- Thermal Continuous Current: 2.5 A
Environmental Conditions:
- Protection Rating: IP65
- Operating Temperature: -25 °C to +65 °C
Connection Technology:
- Connection Type: 2 x Screw Terminal M16 x 1.5
- Wire Cross-Section: 0.5 mm² to 1 mm² (including ferrules)
Dimensions:
- Length x Width x Height: 21.5 x 141 x 115 mm
Scope of Delivery:
- Adjustment key included
Notes:
- Factory-set switching angle: 3°.
- Switching angle may change to 8° over the product's lifespan due to normal wear.
- Switching paths are illustrated with the protective enclosure closed.
Questions & answers
What is the delivery time of Schmersal safety switch TESF / S / U, 101 182 706?
The article Schmersal safety switch TESF / S / U, 101 182 706 is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101182706 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal safety switch TESF / S / U, 101 182 706 always at the best possible price. We can give you a discount of 2% on Schmersal safety switch TESF / S / U, 101 182 706 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
