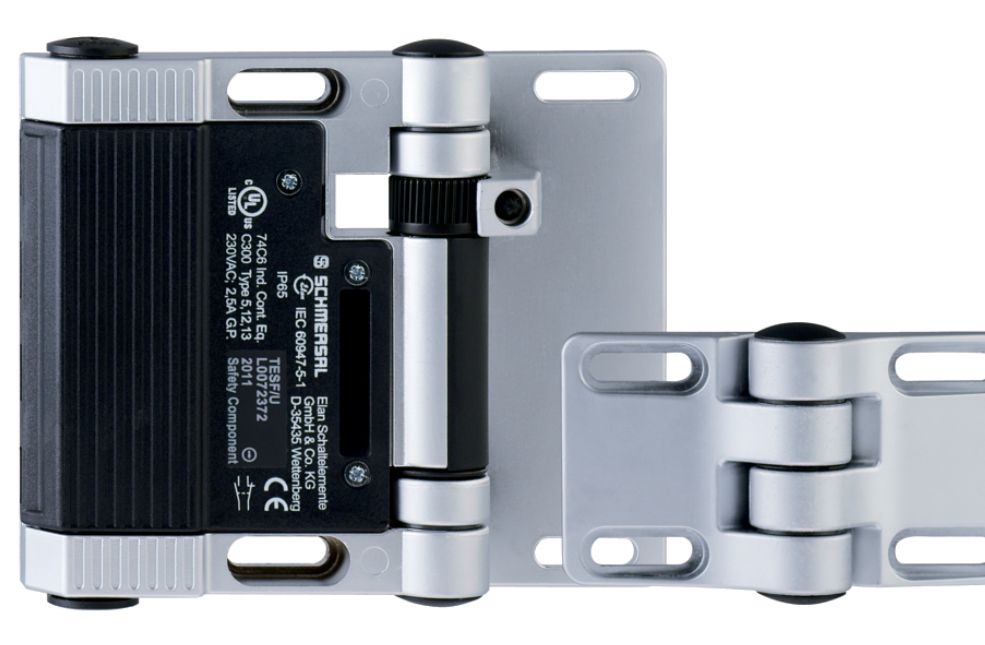

Schmersal TESF/U hinge safety switch 101182694
|
221,39 EUR |
|||||||||||
|
( 263,45 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331364 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101182694 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101182694:
Product Description in English:
The TESF/U safety hinge with adjustable switching angle offers maximum safety and flexibility for industrial applications. Made of durable zinc die-cast material with a sleek black finish, the hinge stands out for its robust design and reliability. With a maximum opening angle of 180° and a forced opening angle of 10°, this product is ideal for monitoring protective covers. The switching angle is factory set to 3° and can be adjusted using the adjustment key included in the delivery.
Technical Data:
Product Type Designation:
- TESF/U
Order Number:
- 101182694
EAN:
- 4030661604725
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-27-06-09
- eCl@ss Version 11.0: 27-27-06-09
- eCl@ss Version 9.0: 27-27-06-09
- ETIM Version 7.0: EC002591
- ETIM Version 6.0: EC002591
Approvals and Standards:
- Certifications: cULus, CCC
- Standards: BG-GS-ET-15, EN IEC 60947-5-1, EN ISO 13849-1
Material and Weight:
- Housing Material: Metal, zinc die-cast
- Housing Color: Black
- Gross Weight: 840 g
Mechanical Properties:
- Adjustable Switching Angle: Yes
- Forced Opening Angle: 10°
- Opening Angle: 180°
- Mechanical Lifespan, Minimum: 1,000,000 operations
- Additional Hinge: Yes
Electrical Properties:
- Thermal Continuous Current: 2.5 A
- Voltage (AC-15): 230 VAC / 2 A
- Voltage (DC-13): 24 VDC / 1 A
- Switching Element: Normally Open (NO), Normally Closed (NC)
- Maximum Switching Frequency: 1,200/h
Connection Technology:
- Connection Type: 2 x Screw Terminal M16 x 1.5
- Conductor Cross-Section: 0.5 – 1 mm² (including ferrules)
Dimensions:
- Length: 21.5 mm
- Width: 141 mm
- Height: 115 mm
Environmental Conditions:
- Protection Rating: IP65
- Ambient Temperature: -25 ... +65 °C
Special Features:
- Adjustment key included in delivery
- The switching angle is factory set to 3° and may change to 8° due to wear.
Delivery Scope:
- Additional hinge
- Adjustment key
Note:
- Switching paths are shown with the protective device closed.
- The forced opening angle is 10°.
Type: TESF/U
Questions & answers
What is the delivery time of Schmersal TESF/U hinge safety switch 101182694?
The article Schmersal TESF/U hinge safety switch 101182694 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101182694 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal TESF/U hinge safety switch 101182694 always at the best possible price. We can give you a discount of 2% on Schmersal TESF/U hinge safety switch 101182694 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal TESF/U hinge safety switch 101182694 we can offer you a price of 218,07 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
