Schmersal TESF/180 hinge safety switch 101182693 content_copy

Product Description in English:

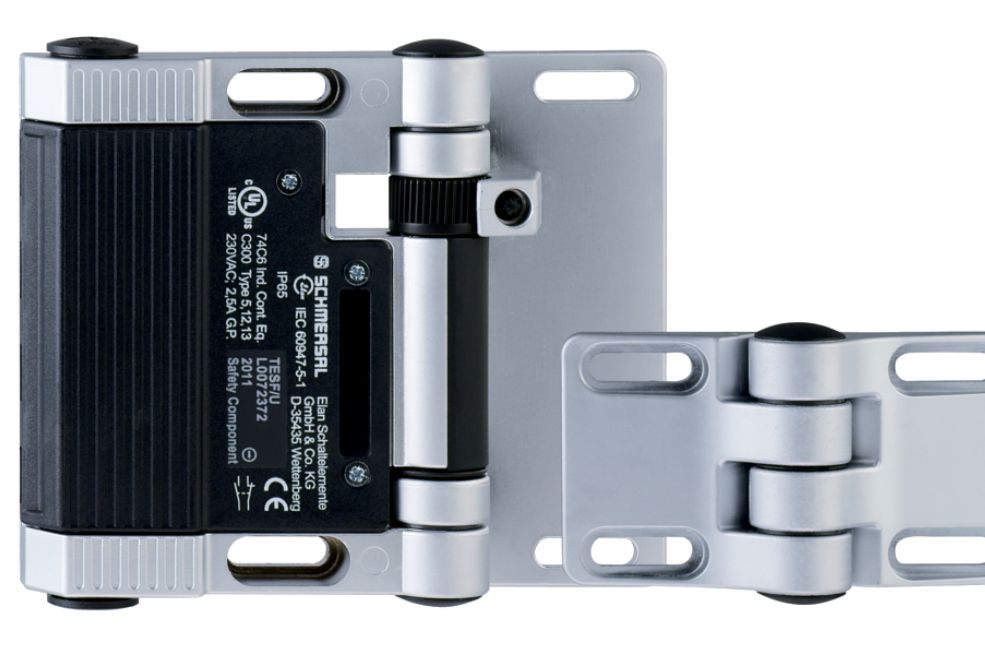

The TESF/180 is a versatile safety hinge with an integrated switching mechanism, designed to meet the highest standards of safety and durability. Made of robust zinc die-cast material and featuring a sleek black finish, this hinge combines reliability and aesthetic appeal. With a 180° opening angle and a 10° forced opening angle, it is ideal for applications requiring secure monitoring of protective covers.

Technical Data:

Product Type Designation:

• TESF/180

Order Number:

• 101182693

EAN:

• 4030661419008

eCl@ss and ETIM Numbers:

• eCl@ss Version 12.0: 27-27-06-09
• eCl@ss Version 11.0: 27-27-06-09
• eCl@ss Version 9.0: 27-27-06-09
• ETIM Version 7.0: EC002591
• ETIM Version 6.0: EC002591

Approvals and Standards:

• Certifications: cULus, CCC
• Standards: BG-GS-ET-15, EN IEC 60947-5-1, EN ISO 13849-1

Material and Weight:

• Housing Material: Metal, zinc die-cast
• Housing Color: Black
• Gross Weight: 840 g

Mechanical Properties:

• Mechanical Lifespan, Minimum: 1,000,000 operations
• Forced Opening Angle: 10°
• Opening Angle: 180°
• Mounting: Internal
• Additional Hinge: Yes

Electrical Properties:

• Thermal Continuous Current: 2.5 A
• Voltage (AC-15): 230 VAC / 2 A
• Voltage (DC-13): 24 VDC / 1 A
• Switching Element: Normally Open (NO), Normally Closed (NC)
• Maximum Switching Frequency: 1,200/h

Connection Technology:

• Connection Type: 2 x Screw Terminal M16 x 1.5
• Conductor Cross-Section: 0.5 – 1 mm² (including ferrules)

Dimensions:

• Length: 21.5 mm
• Width: 141 mm
• Height: 115 mm

Environmental Conditions:

• Protection Rating: IP65
• Ambient Temperature: -25 ... +65 °C

Special Features:

• Factory-set switching angle: 3°
• Additional hinge included in the delivery

Note:

• Switching paths are shown with the protective device closed.
