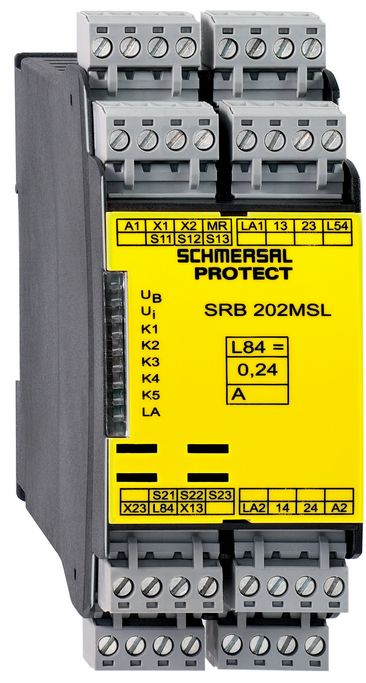

Schmersal SRB 202MSL muting light indicator monitoring 101181998
|
693,35 EUR |
|||||||||||
|
( 825,09 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331109 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101181998 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101181998:
Product Description in English:
The SRB202MSL safety relay is specially designed for applications requiring muting functions. It ensures reliable safety in machine monitoring and supports 2-channel control for contact amplification or duplication. This model is no longer available but can be replaced with similar products.
Technical Data:
Replaces Article Number:
- 101181998
Product Type Designation:
- SRB202MSL
Article Number:
- 101181998
EAN:
- 4250116202577
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-37-18-19
- ETIM Version 7.0: EC001449
Approvals and Standards:
- Certifications: cULus, CCC
- Standards: EN ISO 13849-1, EN IEC 61508, EN IEC 60947-5-1
Material and Weight:
- Housing Material: Plastic, fiberglass-reinforced thermoplastic
- Gross Weight: 400 g
Mechanical Properties:
- Width: 45 mm
- Height: 100 mm
- Depth: 121 mm
- Mechanical Lifespan: Min. 10,000,000 switching cycles
Electrical Properties:
- Operating Voltage: 24 VDC
- Power Consumption: 5.6 W
- Relay Outputs: 2 safety contacts (24 VDC, 2 A)
- Digital Outputs: 2 monitoring outputs
Functions:
- Wire break, short-circuit, and ground fault detection
- Feedback loop and automatic reset function
- Status display with 8 LEDs
Environmental Conditions:
- Protection Class: IP40 (housing), IP40 (terminals), IP40 (installation area)
- Ambient Temperature: -25 ... +45 °C
Safety Consideration:
- Performance Level: PL e
- Category: 4
- SIL: 3
Notes:
- Inductive loads must be protected with appropriate circuitry.
- Ideal for applications with muting sensors and master reset buttons.
Type: SRB202MSL
