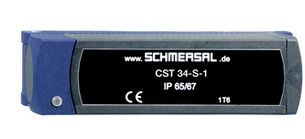

Schmersal 101181085 CST 34-S-1 actuator content_copy

The CST 34-S-1 actuator by K.A. Schmersal GmbH & Co. KG is a durable and robust component specifically designed for use in safety and monitoring systems. Made from high-quality plastic, the actuator is highly resistant to mechanical stress and is ideal for industrial applications. The active surface of the actuator is located on the side, making it suitable for a variety of installation scenarios.

With its compact dimensions of 35 mm in length, 102 mm in width, and 27 mm in height, the CST 34-S-1 fits well even in confined spaces. Please note that the sensor must be ordered separately, as it is not included in the scope of delivery. The actuator is clearly identified according to common international classification systems such as eCl@ss and ETIM.

This actuator offers reliable performance and long service life, making it an ideal component for your safety solutions.

Technical Data (English):

Product Type Designation:

• CST 34-S-1

Item Number (Order Number):

• 101181085

EAN (European Article Number):

• 4030661314921

eCl@ss Number:

• Version 12.0: 27-27-26-06
• Version 11.0: 27-27-24-04
• Version 9.0: 27-27-24-04

ETIM Number:

• Version 7.0: EC001487
• Version 6.0: EC001487

Additional Information:

• Note: Sensor and actuator must be ordered separately.

Material of Actuator:

• Plastic

Gross Weight:

• 85 g

Mechanical Data:

• Active Surface: Side

Mechanical Dimensions:

• Length: 35 mm
• Width: 102 mm
• Height: 27 mm
