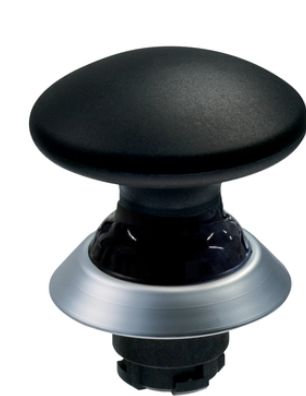

Schmersal NDRZ50GR/SW EMERGENCY STOP button black 101179796
|
39,05 EUR |
|||||||||||
|
( 46,47 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331382 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101179796 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101179796:
The NDRZ50GR/SW emergency mushroom pushbutton is a versatile emergency-stop switch designed with an integrated snap mechanism and durable construction. Rated with IP67 and IP69K protection, and featuring high-quality materials like ABS and silicone, it is ideal for demanding environments. The button is equipped with pull-release and can be mounted flexibly in various positions.
Technical Data:
Product Designation:
- NDRZ50GR/SW
Article Number:
- 101179796
EAN:
- 4030661466569
eCl@ss Numbers:
- Version 12.0: 27-37-12-12
- Version 11.0: 27-37-12-12
- Version 9.0: 27-37-12-12
ETIM Numbers:
- Version 7.0: EC001038
- Version 6.0: EC001038
Approvals - Regulations:
- Certificates: cULus, Hygiene Approved
- Regulations: EN IEC 60947-5-1, EN IEC 60947-1
General Data:
- Design: Emergency mushroom pushbutton
- Form: Integrated snap mechanism
- Installation Conditions (Mechanical): Arbitrary
- Sealing Type: Membranes, lip seals
- Operating Material: ABS
- Front Ring Material: ABS, chrome-plated
- Sealing Bellow Material: Silicone
- Button Color: Black
- Front Ring Color: Silver
- Sealing Bellow Color: Black
- Gross Weight: 50 g
General Data - Features:
- Mounting Flange: Yes
- Integrated Snap Mechanism: Yes
- Latching: Yes
- Full Insulation: Yes
- Maximum Number of Contact Elements: 3
Mechanical Data:
- Release: Pull release
- Mechanical Lifetime, Min.: 100,000 operations
- Actuation Force, Approx.: 2 N
- Mounting: Mounting Flange EFM
- Screw Tightening Torque: 0.6 Nm
Mechanical Data - Dimensions:
- Height: 45 mm
- Installation Depth: Depth behind panel including one contact element
- Button Head Diameter: 50 mm
- Installation Diameter: 22.3 mm
- Panel Thickness, Min.: 1.5 mm
- Panel Thickness, Max.: 6 mm
- Grid Dimension: 50 x 50 mm
Environmental Conditions:
- Protection Rating: IP67, IP69K
- Ambient Temperature: -25 ... +80 °C
- Shock Resistance: 30 g / 18 ms
- Vibration Resistance: 20 g / 10 ... 150 Hz
Type: NDRZ50GR/SW
Questions & answers
What is the delivery time of Schmersal NDRZ50GR/SW EMERGENCY STOP button black 101179796?
The article Schmersal NDRZ50GR/SW EMERGENCY STOP button black 101179796 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101179796 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal NDRZ50GR/SW EMERGENCY STOP button black 101179796 always at the best possible price. We can give you a discount of 2% on Schmersal NDRZ50GR/SW EMERGENCY STOP button black 101179796 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal NDRZ50GR/SW EMERGENCY STOP button black 101179796 we can offer you a price of 37,88 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
