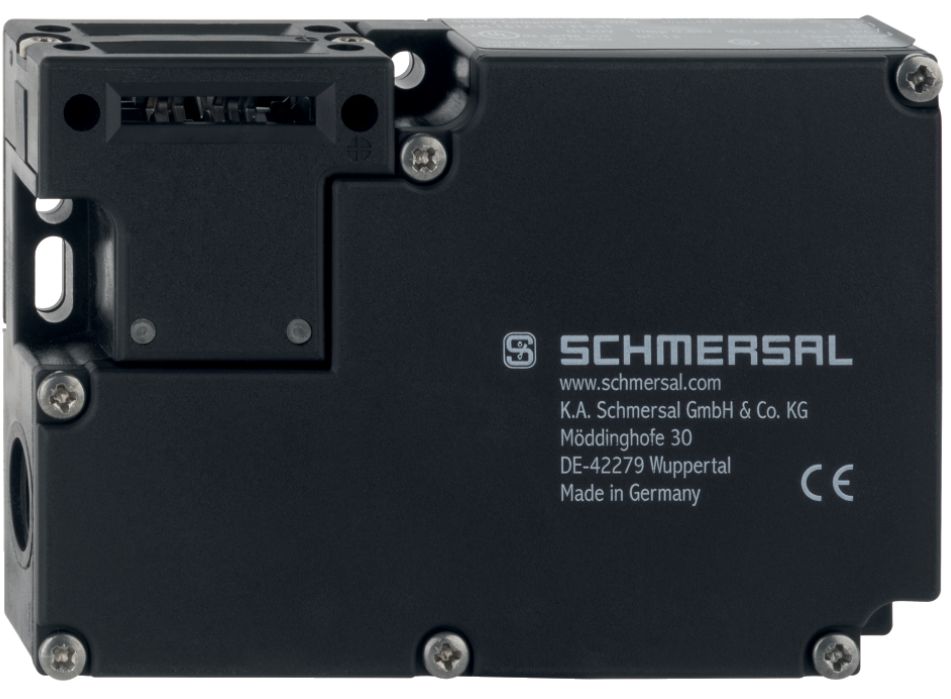

Schmersal AZM 161SK-12/12KA-024 safety locking device 101178837
|
251,17 EUR |
|||||||||||
|
( 298,89 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1128841 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101178837 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101178837:
Product Description in English:
The safety interlock AZM 161SK-12/12KA-024 is an electromechanical locking system designed for demanding industrial applications. With a high locking force of up to 2,600 N and a low coding level according to EN ISO 14119, this switch ensures reliable safety for machines and equipment. The robust housing made of glass-fiber-reinforced thermoplastic offers excellent durability and longevity, even in challenging environments.
Thanks to the IP67 protection rating, the device is safeguarded against dust and water, making it ideal for use in harsh industrial settings. It features four safety contacts and two auxiliary contacts, providing versatile application options.
Technical Data:
Product Type Designation:
- AZM 161SK-12/12KA-024
Order Number:
- 101178837
EAN:
- 4030661311067
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- IFA, cULus, CCC
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Coding Level: Low
- Operating Principle: Electromechanical
- Housing Material: Glass-fiber-reinforced thermoplastic, self-extinguishing
- Gross Weight: 425 g
Safety Consideration:
- Performance Level: Up to PL c (Category 1)
- B10D Opener: 2,000,000 cycles
- B10D Closer: 1,000,000 cycles
- Service Life: 20 years
Mechanical Data:
- Mechanical Lifespan: 1,000,000 cycles
- Locking Force: 2,000 N (FZh), maximum 2,600 N (Fmax)
- Protection Class: IP67
- Dimensions: Length 30 mm, Width 130 mm, Height 90 mm
Electrical Data:
- Operating Voltage: 24 VAC/DC
- Thermal Continuous Current: 6 A
- Safety Contacts: 4
- Auxiliary Contacts: 2
- Maximum Switching Frequency: 1,000/h
Environmental Conditions:
- Temperature Range: -30 °C to +60 °C
- Storage and Transport Temperature: -30 °C to +85 °C
Scope of Delivery:
- Actuator not included.
Notes:
- Only suitable for special cases after a thorough risk assessment.
Type: AZM 161SK-12/12KA-024
