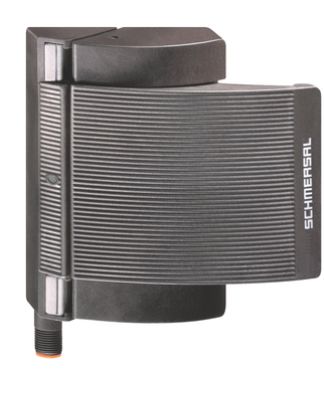

Schmersal BNS-B20-12ZG-ST-R safety sensor 101177734
|
67,63 EUR |
|||||||||||
|
( 80,48 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312602 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101177734 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101177734:
Product Description in English:
The BNS-B20-12ZG-ST-R is a magnetically operated safety sensor designed for use in safety-critical applications. The robust housing made of glass-fiber-reinforced thermoplastic ensures long service life, while the IP67 protection rating supports operation in harsh environments. With two safety contacts, an additional normally open contact, and an integrated LED status indicator, the sensor ensures reliable state monitoring.
Technical Data:
Product Type Designation:
- BNS-B20-12ZG-ST-R
Order Number:
- 101177734
EAN:
- 4030661309194
eCl@ss Numbers:
- Version 12.0: 27-27-44-01
- Version 11.0: 27-27-24-02
- Version 9.0: 27-27-24-02
ETIM Numbers:
- Version 7.0: EC002544
- Version 6.0: EC002544
Approvals and Standards:
- BG-GS-ET-14
- EN IEC 60947-5-3
- cULus
General Properties:
- Operating Principle: Magnetic
- Installation Conditions: Quasi-flush
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic
- Coding Level: Low
- Gross Weight: 115 g
- Number of Safety Contacts: 2
- Number of Normally Closed (NC): 2
- Number of Normally Open (NO): 1
- Number of Wires: 6
Mechanical Data:
- Actuation Element: Magnet
- Door Stop: Right
- Latching Force: 100 N
- Door Weight, Sliding: Max. 3 kg
- Door Weight, Swinging: Max. 5 kg
- Assured Switching Distance: - Sao (ON): 0 mm
- Connection Type: M12 Connector
- Dimensions: - Length: 43.3 mm
- Protection Class: IP67
- Ambient Temperature: -25 ... +70 °C
- Storage and Transport Temperature: -25 ... +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
- Sar (OFF): 22 mm
- Width: 119.5 mm
- Height: 140 mm
Environmental Conditions:
Electrical Data:
- Maximum Switching Voltage: 24 VDC
- Maximum Switching Power: 0.24 W
- Maximum Switching Current: 0.01 A
- Maximum Switching Frequency: 5 Hz
Status Display:
- LED lights up when the safety door is closed.
Scope of Delivery:
- Actuator not included.
Accessories:
- Recommended Actuator: BNS-B20-B01
- Safety Relay Modules: - SRB-E-301ST
- Contact symbols are shown when the protective door is closed.
- Identical contact assignments for versions with or without LED.
- Devices with high switching peaks require suitable protection circuitry.
- SRB-E-201LC
Notes:
Wiring Example:
- Contact S21-S22 must be integrated into the safety circuit.
Type: BNS-B20-12ZG-ST-R
Questions & answers
What is the delivery time of Schmersal BNS-B20-12ZG-ST-R safety sensor 101177734?
The article Schmersal BNS-B20-12ZG-ST-R safety sensor 101177734 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101177734 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS-B20-12ZG-ST-R safety sensor 101177734 always at the best possible price. We can give you a discount of 2% on Schmersal BNS-B20-12ZG-ST-R safety sensor 101177734 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal BNS-B20-12ZG-ST-R safety sensor 101177734 we can offer you a price of 65,60 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
