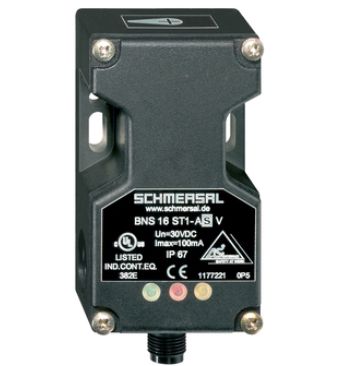

Schmersal 101177221 BNS 16 ST1-AS V AS-i safety sensor content_copy

Product description in English:

The BNS 16 ST1-AS V magnetic safety sensor is an innovative solution for safety applications utilizing AS-Interface (AS-i) technology. Its fiberglass-reinforced thermoplastic housing and IP67 protection rating make it robust and suitable for demanding environments.

It provides secure monitoring in accordance with EN ISO 13849-1, with a performance level up to PL e and category 4. Integration into AS-i networks is streamlined through dynamic code transmission and the pre-configured Safety-Slave mode. The sensor includes an integrated LED display for status monitoring.

Technical specifications:

Ordering information:

• Product designation: BNS 16 ST1-AS V
• Article number: 101177221
• EAN: 4030661308005
• eCl@ss number: 27-27-44-01
• ETIM number: EC002544

Approvals and standards:

• Certifications: cULus, ASi-SaW
• Standards: EN IEC 62026-2, EN ISO 13849-1, EN IEC 60947-5-3, EN IEC 61508

General specifications:

• Operating principle: Magnetic
• Material: Fiberglass-reinforced thermoplastic
• Protection class: II
• Gross weight: 138 g

Mechanical specifications:

• Dimensions: Length 38.5 mm, Width 40 mm, Height 90 mm
• Switching distances: Sao 8 mm, Sar 18 mm
• Connection: M12 connector, 4-pin, A-coded
• Movement direction: Frontal to the active surface

Electrical specifications:

• Operating voltage: 18–31.6 VDC
• Max. AS-i current consumption: 50 mA
• AS-i specification: Safety-Slave, Version V 2.1
• Communication profile: S-0.B.F.E

Environmental conditions:

• Operating temperature: -25 °C to +60 °C
• Protection rating: IP67
• Vibration resistance: 10–55 Hz, Amplitude 1 mm
• Shock resistance: 30 g / 11 ms

Delivery:

• Actuator not included in the scope of delivery.

Accessories:

• Recommended actuator: BPS 16

Notes:

• The AS-i input module address is preset to "0 cm ( 0 inch ) but can be modified.
• LED status indicators provide comprehensive information on operation, errors, and communication.
