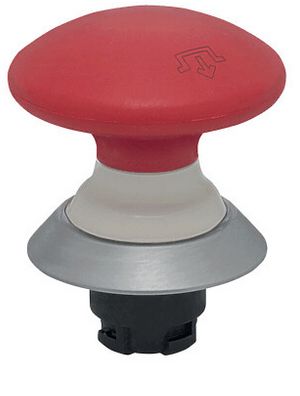

Schmersal NDRZ50GR/RT EMERGENCY STOP button red 101177170
|
39,05 EUR |
|||||||||||
|
( 46,47 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331383 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101177170 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101177170:
Product Description in English:
The NDRZ50GR/RT Emergency Stop Push Button excels with its robust construction and advanced safety features. Equipped with an integrated spring mechanism, this push button ensures reliable emergency stop commands in various industrial applications. Made from high-quality ABS, it features a chrome-plated front ring and a black silicone sealing bellow. With IP67 and IP69K protection ratings, the button offers optimal resistance to dust and water, while its hygiene certification makes it suitable for demanding environments such as the food industry.
Technical Data:
Product Type Designation:
- NDRZ50GR/RT
Article Number:
- 101177170
EAN:
- 4030661466538
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-37-12-12
- ETIM Version 7.0: EC001038
Approvals and Standards:
- Certificates: cULus, Hygiene approved
- Standards: EN IEC 60947-5-1, EN IEC 60947-1
Material and Weight:
- Actuator Material: ABS
- Front Ring Material: ABS, chrome-plated
- Sealing Bellow Material: Silicone
- Actuator Color: Red
- Front Ring Color: Silver
- Sealing Bellow Color: Black
- Gross Weight: 50 g
General Features:
- Emergency Stop Button: Yes
- Safety Functions: Yes
- Integrated Spring Mechanism: Yes
- Latching: Yes
- Full Insulation: Yes
- Maximum Contact Elements: 2
Mechanical Data:
- Unlocking: Pull-to-Release
- Mechanical Lifespan, minimum: 100,000 actuations
- Actuation Force: approx. 2 N
- Mounting: EFM mounting flange
- Screw Tightening Torque: 0.6 Nm
Mechanical Dimensions:
- Height: 45 mm
- Actuator Diameter: 50 mm
- Mounting Hole Diameter: 22.3 mm
- Front Panel Thickness: - Minimum: 1.5 mm
- Grid Dimension: 50 x 50 mm
- Maximum: 6 mm
Environmental Conditions:
- Protection Class: IP67, IP69K
- Operating Temperature: -25 ... +80 °C
- Shock Resistance: 30 g / 18 ms
- Vibration Resistance: 20 g / 10 ... 150 Hz
Type: NDRZ50GR/RT
Questions & answers
What is the delivery time of Schmersal NDRZ50GR/RT EMERGENCY STOP button red 101177170?
The article Schmersal NDRZ50GR/RT EMERGENCY STOP button red 101177170 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101177170 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal NDRZ50GR/RT EMERGENCY STOP button red 101177170 always at the best possible price. We can give you a discount of 2% on Schmersal NDRZ50GR/RT EMERGENCY STOP button red 101177170 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal NDRZ50GR/RT EMERGENCY STOP button red 101177170 we can offer you a price of 37,88 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
