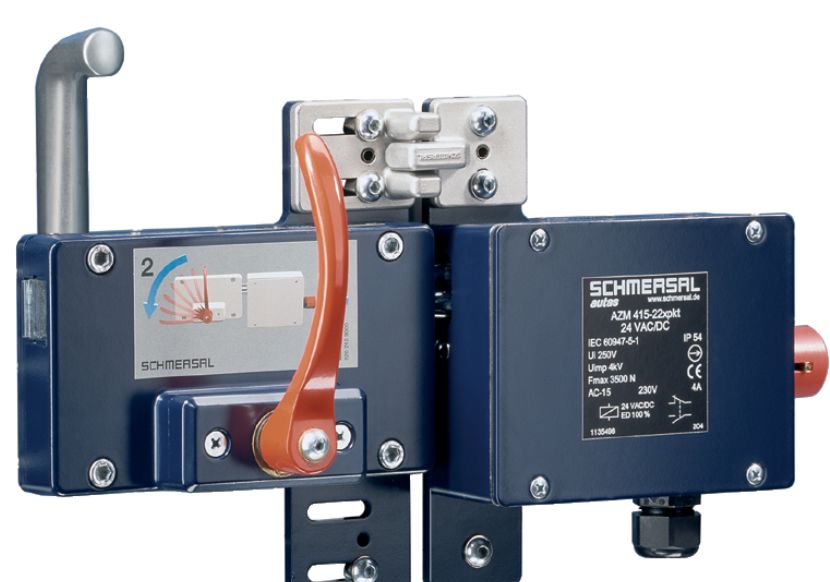

Schmersal AZM 415-STS30-05 Safety interlock
|
478,57 EUR |
|||||||||||
|
( 569,50 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 466680 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101176766 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101176766:
Product Description (English):
The AZM 415-STS30-05 from K.A. Schmersal GmbH & Co. KG is a robust door handle system with an integrated panic handle, designed for use on safety-critical protective doors. The panic handle allows for quick and easy door opening from the inside in emergency situations, ensuring a safe escape route.
The system is designed for a right-hand door hinge and offers a high shear force of 30,000 N, ensuring reliable door locking even under significant mechanical stress. The actuator is mounted externally, making installation and maintenance straightforward.
The package includes a mounting plate for the safety switch and the mounting plate for the panic handle. The safety switch and actuator unit must be ordered separately.
Important Note: When using door handle systems with a panic handle, it is mandatory to use a safety interlock with escape release.
All dimensional drawings are shown in the direction of view toward the switch to ensure proper installation.
Technical Data (English):
Product Type Designation:
- AZM 415-STS30-05
Item Number (Order Number):
- 101176766
EAN (European Article Number):
- 4030661307275
eCl@ss Number:
- Version 12.0: 27-27-26-06
- Version 11.0: 27-27-26-06
- Version 9.0: 27-27-26-06
ETIM Number:
- Version 7.0: EC001487
- Version 6.0: EC001487
General Data:
- Gross Weight: 1.945 g
Features:
- Panic Handle: Yes
Mechanical Data:
- Door Hinge: Right
- Shear Force: 30,000 N
- Actuator Mounting: External
Scope of Delivery:
- Actuator including mounting plate
- Panic handle including mounting plate
- Mounting plate for safety switch
Notes:
- Safety switch and actuator unit must be ordered separately.
- A safety interlock with escape release is required when using a door handle system with a panic handle.
- Dimensional drawings are shown in the direction of view toward the switch.
Type: AZM 415-STS30-05
