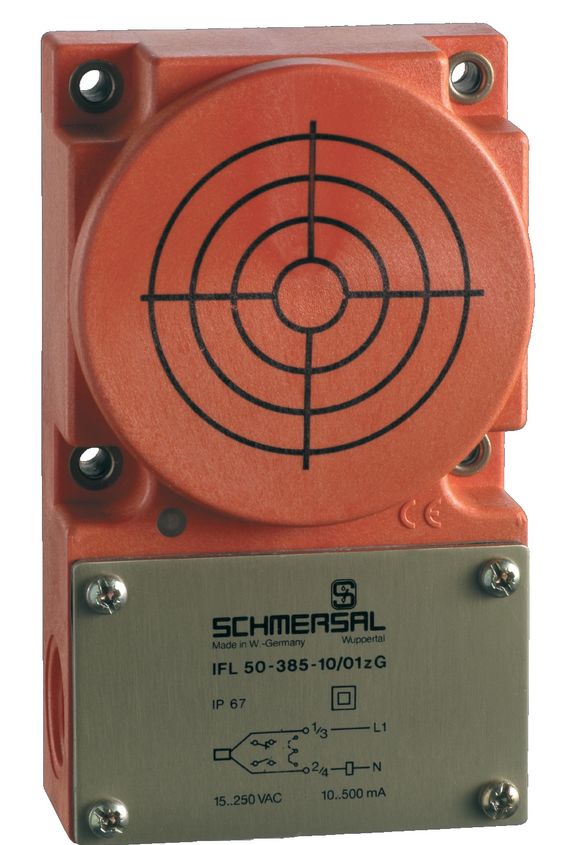

Schmersal IFL 50-385-10 / 01 Inductive, Proximity Switch
|
223,45 EUR |
|||||||||||
|
( 265,91 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 111102 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101173397 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101173397:
An integrated yellow LED provides a clear indication of the sensor’s operational status. The IFL 50-385-10/01-M20 features screw terminals with a maximum connection capacity of 2 x 1.5 mm². It supports both Normally Open (NO) and Normally Closed (NC) configurations and operates in a two-wire system, allowing for easy integration into existing setups.
Operating at a supply voltage range of 15 to 250 VAC and a maximum switching frequency of 10 Hz, this sensor offers versatile usage. An optional HW 385-1 mounting bracket simplifies installation.
Note: Programming is done by repositioning the plug in the connection area.
Technical Data:
Ordering Details:
- Product Type: IFL 50-385-10/01-M20
- Part Number: 101173397
- EAN: 4030661302508
- eCl@ss Number: 27-27-40-01
- ETIM Number: EC002714
Approvals:
- Certifications: CCC
- Standards: DIN VDE 0660-208, EN IEC 60947-5-2
General Data:
- Housing Design: Block
- Installation: Non-flush
- Housing Material: Plastic
- Gross Weight: 420 g
Mechanical Properties:
- Nominal Sensing Distance: 50 mm
- Dimensions (LxWxH): 40 x 80 x 135 mm
Electrical Properties:
- Supply Voltage: 15 ... 250 VAC
- Operating Current: min. 10 mA, max. 500 mA
- Switching Element: Normally Open (NO) or Normally Closed (NC)
- Switching Frequency: 10 Hz
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 °C to +70 °C
Connection Technology:
- Connection Type: Screw terminal M20 x 1.5
- Cable Cross-Section: max. 2 x 1.5 mm²
Status Indication:
- LED Indicator: Yellow
Notes:
- Programming through repositioning the plug in the connection area.
- HW 385-1 mounting bracket available as an accessory.
Type: IFL 50-385-10/01
Questions & answers
What is the delivery time of Schmersal IFL 50-385-10 / 01 Inductive, Proximity Switch?
The article Schmersal IFL 50-385-10 / 01 Inductive, Proximity Switch is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101173397 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal IFL 50-385-10 / 01 Inductive, Proximity Switch always at the best possible price. We can give you a discount of 2% on Schmersal IFL 50-385-10 / 01 Inductive, Proximity Switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal IFL 50-385-10 / 01 Inductive, Proximity Switch we can offer you a price of 220,10 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
