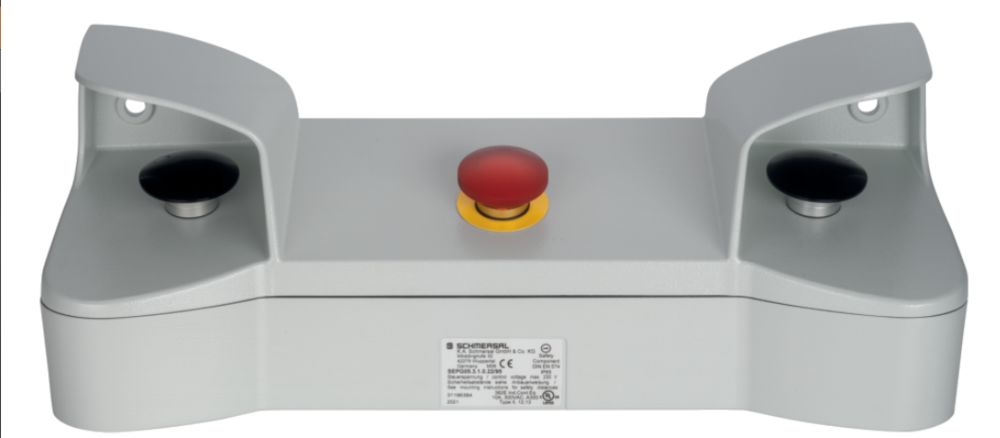

Schmersal SEPG 05.3.4.0.22/95 two-hand control panel 101172765
|
719,80 EUR |
|||||||||||
|
( 856,56 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331118 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101172765 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101172765:
Technical Data:
Product Type:
- SEPG05.3.4.0.22/95
Article Number:
- 101172765
EAN:
- 4250116202881
eCl@ss Classification:
- Version 12.0: 27-37-12-19
- Version 11.0: 27-37-12-19
- Version 9.0: 27-37-12-19
ETIM Classification:
- Version 7.0: EC001260
- Version 6.0: EC001260
Certifications:
- cULus
General Data:
- Housing Material: Aluminum
- Housing Coating: Powder-coated
- Gross Weight: 4,300 g
- Suitable for E-STOP: Yes
- Modular Kit: Yes
- Number of E-STOP Buttons: 1
- Number of NC Contacts: 2
- Number of NO Contacts: 2
- Number of Control Buttons: 2
Mechanical Data:
- Mechanical Lifespan: 10,000,000 operations
- Connection Type: Screw Terminal M20 x 1.5
- Max. Connection Cross-Section: 1.5 mm²
Dimensions:
- Width: 494 mm
- Height: 184 mm
- Depth: 160 mm
- E-STOP Button Length: 38.5 mm
- Control Button Length: 55 mm
Environmental Conditions:
- Protection Rating: IP65
- Rated Insulation Voltage (Ui): 440 V
Electrical Data:
- Thermal Continuous Current: 10 A
- AC-15 Voltage: 250 VAC
- AC-15 Current: 8 A
- DC-13 Voltage: 24 VDC
- DC-13 Current: 5 A
Accessories:
- Recommended Combinations: SRB201ZH, SRB200ZHX1, SRB201ZHX3
Note:
- Optional: Low-force actuation buttons available
- The central section can accommodate up to 10 additional signaling and command devices (Ø 22 mm)
- Each control button and the E-STOP button have 1 NO contact and 1 NC contact
Type: SEPG 05.3.4.0.22/95
Questions & answers
What is the delivery time of Schmersal SEPG 05.3.4.0.22/95 two-hand control panel 101172765?
The article Schmersal SEPG 05.3.4.0.22/95 two-hand control panel 101172765 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101172765 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal SEPG 05.3.4.0.22/95 two-hand control panel 101172765 always at the best possible price. We can give you a discount of 2% on Schmersal SEPG 05.3.4.0.22/95 two-hand control panel 101172765 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Schmersal SEPG 05.3.4.0.22/95 two-hand control panel 101172765 we can offer you a price of 709,00 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
