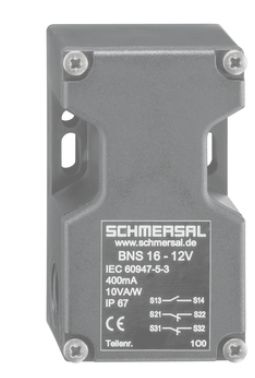

Schmersal BNS 16-12ZD safety sensor 101172563
|
93,06 EUR |
|||||||||||
|
( 110,74 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216184 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101172563 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101172563:
This switch features two NC contacts and one NO contact with a mechanical lifespan of up to 25 million switching cycles. Its top-side active surface provides versatile usage options, while the IP67 protection rating ensures resistance to dust and water. With a secure switching distance of 8 mm ON" and 18 mm "OFF, it delivers precise performance.
Technical Data:
Ordering Details:
- Product Type: BNS 16-12ZD
- Part Number: 101172563
- EAN: 4030661301167
- eCl@ss Number: 27-27-44-01
- ETIM Number: EC002544
General Data:
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
- Coding Level per EN ISO 14119: Low
- Operating Principle: Magnetic
- Installation Conditions: Non-flush
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic
- Gross Weight: 150 g
Mechanical Data:
- Active Surface: Top-side
- Actuating Element: Magnet
- Movement Direction: Frontal to the active surface
- Secure Switching Distance ON (Sao): 8 mm
- Secure Switching Distance OFF (Sar): 18 mm
- Mechanical Lifespan: 25,000,000 switching cycles
Electrical Data:
- Max. Switching Voltage: 100 VAC / 100 VDC
- Max. Switching Current: 0.4 A
- Max. Switching Power: 10 W
- Switching Element: 1 NO, 2 NC
- Max. Switching Frequency: 5 Hz
Connection Technology:
- Connection Type: Screw connection M20 x 1.5
- Connection Cross-Section: 0.25 mm² to 1.5 mm²
Dimensions:
- Length: 39 mm
- Width: 52 mm
- Height: 90 mm
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 °C to +70 °C
- Storage and Transport Temperature: -25 °C to +70 °C
Accessories:
- Recommended Actuator: BPS 16
- Recommended Safety Switching Devices: SRB-E-301ST, SRB-E-201LC
Type: BNS 16-12ZD
