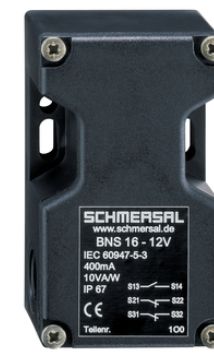

Schmersal 101172554 BNS 16-12ZL safety sensor
|
-16% 77,38 EUR 91,66 EUR |
|
|
( 92,08 EUR incl. VAT ) ≈ £65.70 | ≈ $87.21 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1216186 |
|---|---|
| Mfg Part No: | 101172554 |
| UPC/EAN: | 4030661301136 |
| Weight: | 0.123 kg |
| Type: | BNS 16-12ZL |
Product information for Schmersal 101172554:
The switch includes two NC contacts and one NO contact, with a secure switching distance of 8 mm ON" and 18 mm "OFF. With an IP67 protection rating, the switch is suitable for demanding environments. Its long mechanical lifespan of up to 25 million switching cycles ensures reliability and longevity.
Technical Data:
Ordering Details:
- Product Type: BNS 16-12ZL
- Part Number: 101172554
- EAN: 4030661301136
- eCl@ss Number: 27-27-44-01
- ETIM Number: EC002544
General Data:
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
- Coding Level per EN ISO 14119: Low
- Operating Principle: Magnetic
- Installation Conditions: Non-flush
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic
- Gross Weight: 125 g
Mechanical Data:
- Active Surface: Left-hand side
- Actuating Element: Magnet
- Movement Direction: Frontal to the active surface
- Secure Switching Distance ON (Sao): 8 mm
- Secure Switching Distance OFF (Sar): 18 mm
- Mechanical Lifespan: 25,000,000 switching cycles
Electrical Data:
- Max. Switching Voltage: 100 VAC / 100 VDC
- Max. Switching Current: 0.4 A
- Max. Switching Power: 10 W
- Switching Element: 1 NO, 2 NC
- Max. Switching Frequency: 5 Hz
Connection Technology:
- Connection Type: Screw connection M20 x 1.5
- Connection Cross-Section: 0.25 mm² to 1.5 mm²
Dimensions:
- Length: 39 mm
- Width: 52 mm
- Height: 90 mm
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 °C to +70 °C
- Storage and Transport Temperature: -25 °C to +70 °C
Accessories:
- Recommended Actuator: BPS 16
- Recommended Safety Switching Devices: SRB-E-301ST, SRB-E-201LC
Questions & answers
What is the delivery time of Schmersal 101172554 BNS 16-12ZL safety sensor ?
The article Schmersal 101172554 BNS 16-12ZL safety sensor is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101172554 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal 101172554 BNS 16-12ZL safety sensor always at the best possible price. We can give you a discount of 2% on Schmersal 101172554 BNS 16-12ZL safety sensor if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
