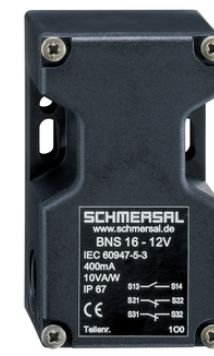

Schmersal 101172553 Safety Sensor, BNS16-12ZV
|
88,99 EUR 92,86 EUR |
|
|
( 105,90 EUR incl. VAT ) ≈ £76.35 | ≈ $103.14 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 502034 |
|---|---|
| Mfg Part No: | 101172553 |
| Weight: | 0.123 kg |
Further Initiators, inductive / capacitive from SchmersalFurther products in category Initiators, inductive / capacitive
All products of Schmersal
Product information for Schmersal 101172553:
The BNS 16-12ZV is a reliable and compact magnetic safety sensor specifically designed for industrial applications. Operating on a magnetic principle, it ensures secure monitoring of protective devices. With coding as per EN ISO 14119 and a robust construction of glass-fiber-reinforced thermoplastic, the sensor is both durable and versatile.
The sensor features an active area on the front and allows precise activation through a magnet moving frontally towards the active surface. With secure switching distances of 8 mm (ON") and 18 mm ("OFF), the BNS 16-12ZV provides high operational safety. It is designed for integration into non-flush mounting conditions and requires an evaluation unit for operation.
Electrical features include one normally open (NO) and two normally closed (NC) contacts, with a maximum switching power of 10 W. The sensor operates within a temperature range of -25 °C to +70 °C and meets the IP67 protection standard, making it ideal for demanding environments. A mechanical lifespan of 25 million switching cycles ensures long-term reliability.
Ordering Details:
Type: BNS 16-12ZV
The sensor features an active area on the front and allows precise activation through a magnet moving frontally towards the active surface. With secure switching distances of 8 mm (ON") and 18 mm ("OFF), the BNS 16-12ZV provides high operational safety. It is designed for integration into non-flush mounting conditions and requires an evaluation unit for operation.
Electrical features include one normally open (NO) and two normally closed (NC) contacts, with a maximum switching power of 10 W. The sensor operates within a temperature range of -25 °C to +70 °C and meets the IP67 protection standard, making it ideal for demanding environments. A mechanical lifespan of 25 million switching cycles ensures long-term reliability.
Technical Data:
Ordering Details:
- Product Type: BNS 16-12ZV
- Part Number: 101172553
- EAN: 4030661301129
- eCl@ss Number: 27-27-44-01
- ETIM Number: EC002544
Approvals:
- Certifications: cULus
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
General Data:
- Operating Principle: Magnetic
- Housing Material: Glass-fiber-reinforced thermoplastic
- Gross Weight: 125 g
Mechanical Properties:
- Active Area: Frontal
- Actuation Element: Magnet
- Switching Distances: - ON (Sao): 8 mm
- Mounting Condition: Non-flush
- Dimensions (LxWxH): 39 x 52 x 90 mm
- OFF (Sar): 18 mm
Electrical Properties:
- Max. Switching Voltage: 100 VAC / 100 VDC
- Max. Switching Current: 0.4 A
- Max. Switching Power: 10 W
- Switching Elements: 1 Normally Open (NO), 2 Normally Closed (NC)
- Switching Frequency: max. 5 Hz
Environmental Conditions:
- Protection Rating: IP67
- Operating Temperature: -25 °C to +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
Included:
- The actuator is not included in the scope of delivery.
Accessories:
- Recommended Actuator: BPS 16
- Recommended Safety Control Units: SRB-E-301ST, SRB-E-201LC
Notes:
- Contact symbols are shown with the protective device closed.
Type: BNS 16-12ZV
