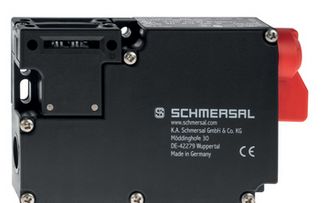

Schmersal AZM 161SK-12/12RKN-024 safety locking device 101172152
|
298,07 EUR |
|||||||||||
|
( 354,70 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1128839 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101172152 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101172152:
Product Description in English:
The safety interlock AZM 161SK-12/12RKN-024 is an electromechanical locking solution designed to ensure the highest safety standards for industrial applications. With a maximum locking force of 2,600 N and an integrated emergency unlocking function, it provides both protection and flexibility. The robust housing made of glass-fiber-reinforced thermoplastic is self-extinguishing and resistant to mechanical and thermal stress.
This model features four safety contacts and two auxiliary contacts, offering versatile application options. With an IP67 protection rating, the interlock is protected against dust and water, ensuring reliable performance in demanding environments. Its straightforward installation via screw terminals and compatibility with various protective enclosures make it a practical choice for industrial use.
Technical Data:
Product Type Designation:
- AZM 161SK-12/12RKN-024
Order Number:
- 101172152
EAN:
- 4030661306865
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- IFA, cULus, CCC
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Coding Level: Low
- Operating Principle: Electromechanical
- Housing Material: Glass-fiber-reinforced thermoplastic, self-extinguishing
- Gross Weight: 435 g
Safety Consideration:
- Performance Level: Up to PL c (Category 1)
- B10D Opener: 2,000,000 cycles
- B10D Closer: 1,000,000 cycles
- Service Life: 20 years
Mechanical Data:
- Mechanical Lifespan: 1,000,000 cycles
- Locking Force: 2,000 N (FZh), maximum 2,600 N (Fmax)
- Latching Force: 30 N
- Protection Class: IP67
- Dimensions: Length 30 mm, Width 130 mm, Height 90 mm
Electrical Data:
- Operating Voltage: 24 VAC/DC
- Thermal Continuous Current: 6 A
- Safety Contacts: 4
- Auxiliary Contacts: 2
- Maximum Switching Frequency: 1,000/h
Environmental Conditions:
- Temperature Range: -30 °C to +60 °C
- Storage and Transport Temperature: -30 °C to +85 °C
Scope of Delivery:
- Actuator not included.
Notes:
- Emergency unlocking should be mounted only outside the protective enclosure.
Type: AZM 161SK-12/12RKN-024
Questions & answers
What is the delivery time of Schmersal AZM 161SK-12/12RKN-024 safety locking device 101172152?
The article Schmersal AZM 161SK-12/12RKN-024 safety locking device 101172152 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101172152 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 161SK-12/12RKN-024 safety locking device 101172152 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 161SK-12/12RKN-024 safety locking device 101172152 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 161SK-12/12RKN-024 safety locking device 101172152 we can offer you a price of 289,13 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
