Schmersal SE-P40-10000 safety edge 101172151
|
252,34 EUR |
|
|
( 300,28 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1312575 |
|---|---|
| Mfg Part No: | 101172151 |
| Weight: | 0 kg |
Product information for Schmersal 101172151:
Product Description in English:

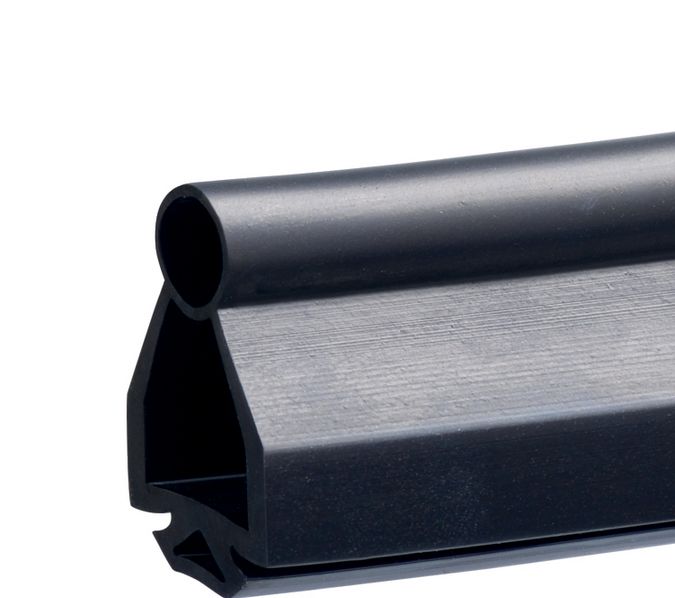

The SE-P40-10000 PACKAGED rubber profile is a premium solution for edge sensor systems used in safety applications. With a length of 10,000 mm and made from durable EPDM rubber, it offers long-lasting performance and excellent resistance to weather and ozone. The material is tailored for demanding operational conditions, and its mechanical resilience ensures at least 20 million switching cycles.
Compliant with EN ISO 13850, the rubber profile is ideal for applications requiring reliable and durable safety components. It can be integrated into customized edge sensor systems alongside additional components such as aluminum profiles, transmitters/receivers, and safety modules.
Technical Data:
Product Type Designation:
- SE-P40-10000 PACKAGED RUBBER PROFILE 10M
Order Number:
- 101172151
EAN:
- 4030661300153
eCl@ss Numbers:
- Version 12.0: 27-27-34-01
- Version 11.0: 27-27-34-01
- Version 9.0: 27-27-34-01
ETIM Numbers:
- Version 7.0: EC002887
- Version 6.0: EC002887
Material Properties:
- Material: EPDM, 65 Shore A
- Color: Black
- Resistance to Permanent Deformation: Good
- Resistance to: - Ozone: Excellent
- Lifespan: At least 20,000,000 switching cycles
- Dimensions: - Length: 10,000 mm
- Protection Class: IP67
- Temperature Resistance: - Short-Term: -50 °C to +170 °C
- Profiles with plastic coatings are available for higher resistance requirements.
- Weather: Excellent
- Acids: Good
- Rebound Elasticity at 20°C: Good
- Oil, Fuel, Solvents: Low
Mechanical Data:
- Width: 25 mm
- Height: Approx. 38 mm
Environmental Conditions:
- Long-Term: -30 °C to +140 °C
Additional Information:
Scope of Delivery:
- The rubber profile is delivered without additional accessories.
Optional Components (sold separately):
- Aluminum profile (e.g., SE-AL 10-1250)
- Transmitter/Receiver (e.g., SE-SET)
- Safety module (e.g., SE-304 C)
- End caps SE-T40
- Adhesive SE-G8406
Notes:
- Mechanical stress on plastic coatings should be minimized.
Type: SE-P40-10000
