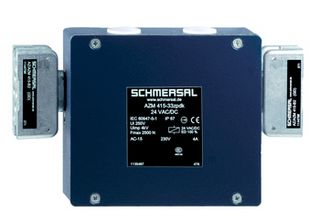

Schmersal AZM 415-33ZPDKA 24VAC/DC safety locking device 101172090
|
561,23 EUR |
|||||||||||
|
( 667,86 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216187 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101172090 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101172090:
Ordering Details:
- Product Type: AZM 415-33ZPDKA-M20 24VAC/DC
- Part Number: 101172090
- EAN: 4030661299990
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
General Data:
- Standards: BG-GS-ET-19, EN IEC 60947-5-1
- Operating Principle: Electromechanical
- Housing Material: Aluminum
- Housing Coating: Painted
- Gross Weight: 1.230 g
Mechanical Data:
- Mechanical Lifespan: Min. 1,000,000 switching cycles
- Locking Force (FZh per EN ISO 14119): 2,500 N (per door)
- Latching Force: Min. 150 N, Max. 400 N
- Positive Opening Distance: 4.5 mm
- Positive Opening Force: Min. 15 N
- Max. Actuation Speed: 0.2 m/s
Electrical Data:
- Rated Control Supply Voltage: 24 VAC/DC
- Thermal Continuous Current: 6 A
- Max. Switching Voltage: 230 VAC
- Max. Switching Current: 4 A (AC-15), 1 A (DC-13)
- Electrical Power Consumption: Max. 10 W
- Switching Element: NO (closer), NC (opener)
- Switching Principle: Slow-action
Connection Technology:
- Connection Type: Screw Connection M20 x 1.5
- Connection Cross-Section: 2 x 0.75 mm² to 2 x 2.5 mm²
Dimensions:
- Length: 46.5 mm
- Width: 141 mm
- Height: 125 mm
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 °C to +50 °C
- Relative Humidity: Non-condensing, non-freezing
Applications:
- Sliding protective devices
- Rotating protective devices
Type: AZM 415-33ZPDKA 24VAC/DC
Questions & answers
What is the delivery time of Schmersal AZM 415-33ZPDKA 24VAC/DC safety locking device 101172090?
The article Schmersal AZM 415-33ZPDKA 24VAC/DC safety locking device 101172090 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101172090 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 415-33ZPDKA 24VAC/DC safety locking device 101172090 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 415-33ZPDKA 24VAC/DC safety locking device 101172090 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Schmersal AZM 415-33ZPDKA 24VAC/DC safety locking device 101172090 we can offer you a price of 552,81 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
