Schmersal BN 20-01Z magnetic switch 101172087

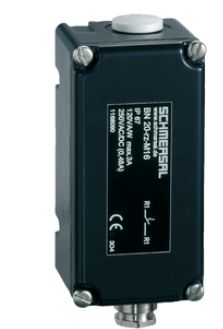

The BN 20-01Z-M16 from Schmersal is a rectangular magnetic sensor with a durable aluminum housing, designed for use in industrial applications. The sensor operates based on a magnetic principle and is particularly suitable for safety-critical environments requiring high mechanical durability and reliability.

With a mechanical lifespan of at least 1 billion switching cycles, the BN 20-01Z-M16 is highly durable. The sensor features a side actuation plane and an active area on the side. Actuation is performed by specific magnets that must be ordered separately.

The sensor has an IP67 protection rating and can operate in ambient temperatures ranging from -25 °C to +90 °C. With a switching voltage of up to 250 VAC and a maximum switching current of 3 A, the sensor provides reliable switching performance.

Important Note: The actuator is not included in the delivery. Recommended actuators are models BP 10, BP 20, BP 31, and others.
Technical Data:

Product Type Designation:

BN 20-01Z-M16

Article Number (Order Number):

101172087

EAN (European Article Number):

4030661299983

eCl@ss Numbers:

Version 12.0: 27-27-43-02
Version 11.0: 27-27-01-05
Version 9.0: 27-27-01-05

ETIM Numbers:

Version 7.0: EC002544
Version 6.0: EC002544

Approvals - Regulations:

Certificates:

cULus

Standards:

EN IEC 60947-5-1

General Data:

Operating Principle:

Magnetic

Housing Design:

Rectangular

Housing Material:

Aluminum

Active Surface Material:

Metal

Gross Weight:

300 g

Preload Magnet:

Yes

Number of NC Contacts:

1

Mechanical Data:

Actuation Plane:

Side

Active Surface:

Side

Actuation Element:

Magnet

Mechanical Lifespan, Minimum:

1,000,000,000 switching cycles

Maximum Actuation Speed:

18 m/s

Switching Distance According to EN IEC 60947-5-3:

Switching Distance Sn:

BP 11 = 15 mm
12 mm to 45 mm
2x BP 10 = 12 mm
2x BP 15/2 = 12 mm
BP 20 = 15 mm
BP 31 = 15 mm
BP 12 = 25 mm
BP 21N = 20 ... 45 mm
BE 20 = 15 mm

Switching Distance Note:

Up to 45 mm, depending on the magnet and configuration

Repeat Accuracy R:

0.3 mm

Connectivity:

Connection Type:

Screw Connection M20 x 1.5

Dimensions:

Sensor Length:

47 mm

Sensor Width:

104 mm

Sensor Height:

52 mm

Environmental Conditions:

Degree of Protection:

IP67

Ambient Temperature:

-25 ... +90 °C

Vibration Resistance:

50 g, sinusoidal oscillation

Electrical Data:

Maximum Switching Voltage:

250 VAC

Maximum Switching Current:

3 A

Maximum Switching Power:

120 W
120 VA

Switching Element:

NC (Normally Closed)

Bounce Time, Minimum:

0.3 ms

Bounce Time, Maximum:

0.6 ms

Maximum Switching Frequency:

1,080,000 /h

Digital Outputs:

Switching Element Type:

Reed Contact

Included Items:

The actuator is not included in the delivery.

Accessories:

Recommended Actuators:

2x BP 10
2x BP 15/2
BP 20
BP 31
BP 11
BP 12
BP 21 N
BE 20

Note (General):

The NC or NO function depends on the actuation direction, the magnet, and the polarity of the magnet.
When aligning the switch and actuator, color matching is required: red (S) to red (S) and green (N) to green (N).
Type: BN 20-01Z
