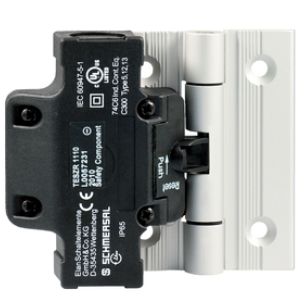

Schmersal 101172009 TESZR1110/S safety switch for rotating protective device
|
-16% 153,85 EUR 182,24 EUR |
|
|
( 183,08 EUR incl. VAT ) ≈ £130.62 | ≈ $173.39 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1003010 |
|---|---|
| Mfg Part No: | 101172009 |
| UPC/EAN: | 4030661605401 |
| Weight: | 0.123 kg |
| Type: | TESZR1110/S |
Product information for Schmersal 101172009:
The TESZR1110/S is a high-quality hinge switch system with an integrated safety switch. It provides three safety contacts, robust plastic and aluminum construction, and long service life. Suitable for mounting on profile systems.
Technical Data:
Product Designation:
- TESZR1110/S
Article Number:
- 101172009
EAN:
- 4030661605401
eCl@ss Numbers:
- Version 12.0: 27-27-06-09
- Version 11.0: 27-27-06-09
- Version 9.0: 27-27-06-09
ETIM Numbers:
- Version 7.0: EC002591
- Version 6.0: EC002591
Approvals - Regulations:
- Certificates: cULus, CCC
- Standards: BG-GS-ET-15, EN IEC 60947-5-1
General Data:
- Housing Material: Plastic, glass fiber-reinforced thermoplastic, self-extinguishing
- Hinge Material: Aluminum
- Gross Weight: 280 g
General Data - Features:
- Mounting Hinge: Yes
- Number of Safety Contacts: 3
Safety Consideration:
- Standards: EN ISO 13849-1
- Service Life: 20 years
Safety Consideration - Safety Outputs:
- B10D NC Contact: 2,000,000 cycles
- B10D NO Contact: 1,000,000 cycles
Mechanical Data:
- Mechanical Lifetime, Minimum: 1,000,000 cycles
- Positive Opening Angle: 14°
- Minimum Positive Opening Force: 1 N
Mechanical Data - Connection Technology:
- Connection Type: Screw Terminal M20 x 1.5
- Connection Cross-Section: - Minimum: 0.5 mm²
- Note: All data including ferrules
- Maximum: 1 mm²
Mechanical Data - Dimensions:
- Suitable for profile systems: 40 mm
- Length: 36 mm
- Width: 111.5 mm
- Height: 92 mm
Environmental Conditions:
- Protection Rating: IP65
- Ambient Temperature: -25 ... +65 °C
Environmental Conditions - Insulation Values:
- Rated Insulation Voltage Ui: 250 VAC
- Rated Impulse Withstand Voltage Uimp: 2.5 kV
Electrical Data:
Note:
