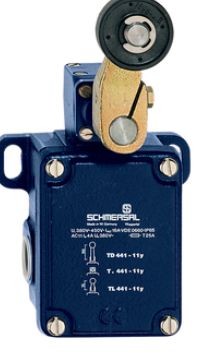

Schmersal ML441-11Y position switch medium heavy roller swivel h.101170496
|
262,44 EUR |
|||||||||||
|
( 312,30 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311758 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101170496 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101170496:
The position switch ML 441-11Y-M20 is a reliable mechanical switching device, ideal for demanding applications. Its housing, made from zinc-coated cast iron with a painted finish, ensures durability and longevity. The switch is equipped with a roller lever actuator featuring a plastic roller, allowing precise and smooth operation. With an IP65 protection rating, it is safeguarded against dust and water splashes and operates within a wide temperature range of -30 °C to +90 °C. Its high mechanical lifespan of at least 10 million cycles makes it a dependable choice for industrial environments.
Technical Data:
Product Designation:- ML 441-11Y-M20
Article Number:
- 101170496
EAN:
- 4030661297781
Certifications and Standards:
- INMETRO, CCC
- EN IEC 60947-5-1
Operating Principle:
- Mechanical
Plunger Shape:
- Roller
Materials:
- Housing: Zinc-coated cast iron
- Housing Coating: Painted
- Roller: Plastic
Gross Weight:
- 1.655 g
Mechanical Data:
- Actuating Element: Roller lever actuator
- Mechanical Lifespan: min. 10,000,000 cycles
- Approach Angle: 30° (left and right)
- Contact Opening Width: 2 x 2.5 mm
- Actuating Speed: 1 mm/min to 3 m/s
- Note: Speed at a vertical approach angle
Electrical Data:
- Thermal Continuous Current: 16 A
- Operating Voltage AC-15: 250 VAC, Current: 4 A
- Switching Element: 1 Normally Open (NO), 1 Normally Closed (NC)
- Switching Principle: Snap-action mechanism
- Bounce Time: max. 5 ms
- Contact Material: Silver
Connection Technology:
- Connection Type: Screw terminal M20 x 1.5
- Connection Cross-section: 1.5 mm² to 2.5 mm² (including ferrules)
- Conductor Cross-section: 13 AWG
Dimensions:
- Length: 63 mm
- Width: 106 mm
- Height: 192 mm
- Roller Width: 9 mm
- Roller Diameter: 36 mm
Environmental Conditions:
- Protection Class: IP65
- Ambient Temperature: -30 °C to +90 °C
Insulation Ratings:
- Rated Insulation Voltage Ui: 250 VAC
- Rated Impulse Withstand Voltage Uimp: 6 kV
Type: ML 441-11Y
Questions & answers
What is the delivery time of Schmersal ML441-11Y position switch medium heavy roller swivel h.101170496?
The article Schmersal ML441-11Y position switch medium heavy roller swivel h.101170496 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101170496 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal ML441-11Y position switch medium heavy roller swivel h.101170496 always at the best possible price. We can give you a discount of 2% on Schmersal ML441-11Y position switch medium heavy roller swivel h.101170496 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal ML441-11Y position switch medium heavy roller swivel h.101170496 we can offer you a price of 258,50 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
