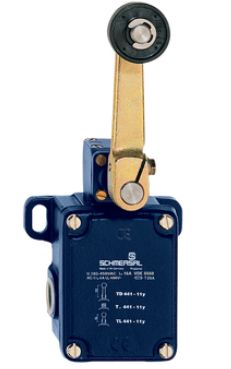

Schmersal TD 441-11Y position switch medium heavy roller swivel h.101170463
|
246,98 EUR |
|||||||||||
|
( 293,91 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311757 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101170463 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101170463:
The TD 441-11Y-M20 is a robust mechanical position switch with a roller lever, designed for industrial applications. With a durable housing made of zinc-coated cast iron and a painted protective coating, this switch ensures reliable operation even in demanding environments. It offers a mechanical lifetime of at least 10 million operations and is protected by an IP65 enclosure, making it ideal for harsh conditions.
Technical Data:
Product Designation:
- TD 441-11Y-M20
Article Number:
- 101170463
EAN:
- 4030661297743
eCl@ss Numbers:
- Version 12.0: 27-27-06-01
- Version 11.0: 27-27-06-01
- Version 9.0: 27-27-06-01
ETIM Numbers:
- Version 7.0: EC000030
- Version 6.0: EC000030
Approvals - Regulations:
- Certificates: INMETRO, CCC
- Standards: EN IEC 60947-5-1
General Data:
- Operating Principle: mechanical
- Actuator Form: Roller
- Housing Material: Zinc-coated cast iron
- Housing Coating Material: Painted
- Gross Weight: 1.675 kg
Features:
- Number of Normally Open Contacts: 1
- Number of Normally Closed Contacts: 1
Safety Considerations - Safety Outputs:
- B10D NC Contacts: 2,000,000 operations
Mechanical Data:
- Actuator Type: Roller lever
- Roller Material: Plastic
- Mechanical Lifetime, min.: 10,000,000 operations
- Approach Angle: - From left: 30°
- Contact Gap Width: 2 x 6 mm
- Operating Speed: - Minimum: 1 mm/min
- Note: Operating speed at vertical approach angle
- From right: 30°
- Maximum: 3 m/s
Connection Technology:
- Connection Type: Screw Connection M20 x 1.5
- Connection Cross-Section: - Minimum: 1.5 mm²
- Wire Cross-Section: 13 AWG
- Maximum: 2.5 mm² (incl. ferrules)
Dimensions:
- Sensor Length: 63 mm
- Sensor Width: 106 mm
- Sensor Height: 237 mm
- Roller Width: 9 mm
- Roller Diameter: 36 mm
Environmental Conditions:
- Protection Class: IP65
- Ambient Temperature: -30 ... +90 °C
Insulation Properties:
- Rated Insulation Voltage Ui: 400 V
- Rated Impulse Voltage Uimp: 6 kV
Electrical Data:
- Thermal Continuous Current: 16 A
- Voltage, Utilization Category AC-15: 400 VAC
- Current, Utilization Category AC-15: 4 A
- Switching Element: Normally Open (NO), Normally Closed (NC), with double interruption
- Switching Principle: Slow Action
- Electrical Contact Material: Silver
Type: TD 441-11Y
Questions & answers
What is the delivery time of Schmersal TD 441-11Y position switch medium heavy roller swivel h.101170463?
The article Schmersal TD 441-11Y position switch medium heavy roller swivel h.101170463 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101170463 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal TD 441-11Y position switch medium heavy roller swivel h.101170463 always at the best possible price. We can give you a discount of 2% on Schmersal TD 441-11Y position switch medium heavy roller swivel h.101170463 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal TD 441-11Y position switch medium heavy roller swivel h.101170463 we can offer you a price of 239,57 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
