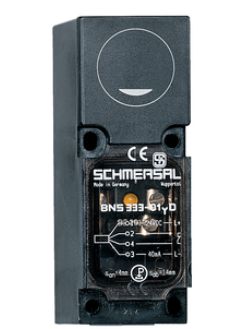

Schmersal BNS 333-01YU safety sensor 101169807
|
143,38 EUR |
|||||||||||
|
( 170,62 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216174 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101169807 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101169807:
With a high mechanical lifespan of up to 20 million switching cycles, the BNS 333-01YU-M20 is a robust and durable choice. The screw connection design ensures easy installation and maintenance.
Technical Data:
Ordering Details:
- Product Type: BNS 333-01YU-M20
- Part Number: 101169807
- EAN: 4030661296524
- eCl@ss Number: 27-27-44-01
- ETIM Number: EC002544
General Data:
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
- Coding Level: Low
- Operating Principle: Magnetic
- Mounting Conditions: Quasi-flush
- Housing Material: Glass-fiber reinforced thermoplastic
- Risk Time: Max. 50 ms
- Gross Weight: 145 g
Mechanical Data:
- Active Area: Bottom
- Movement Direction: Frontal to the active area
- Mechanical Lifespan: Min. 20,000,000 switching cycles
- Switching Distance ON (Sao): 4 mm
- Switching Distance OFF (Sar): 14 mm
Electrical Data:
- Max. Switching Voltage: 250 VAC
- Max. Switching Current: 5 A
- Max. Switching Power: 1,250 W
- Switching Element: 1 NC contact
- Readiness Delay: Max. 50 ms
- Switching Frequency: Max. 5 Hz
Connection Technology:
- Screw Connection M20 x 1.5
- Connection Cross-section: 2 x 0.75 mm² to 2 x 1.5 mm²
- Conductor Cross-section: 15 AWG
Dimensions:
- Length: 39 mm
- Width: 52 mm
- Height: 90 mm
Environmental Conditions:
- Protection Class: IP65
- Ambient Temperature: -25 °C to +55 °C
- Storage and Transport Temperature: -25 °C to +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
Accessories:
- Recommended Actuators: BPS 300, BPS 303, BPS 303 SS
- Recommended Safety Control Units: SRB-E-301ST, SRB-E-201LC
Scope of Delivery:
- Actuator not included.
Notes:
- The integrated LED indicates the status of the safety door (lights up when the door is closed).
- Contact symbols are displayed when the safety door is closed.
Type: BNS 333-01YU
Questions & answers
What is the delivery time of Schmersal BNS 333-01YU safety sensor 101169807?
The article Schmersal BNS 333-01YU safety sensor 101169807 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101169807 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 333-01YU safety sensor 101169807 always at the best possible price. We can give you a discount of 2% on Schmersal BNS 333-01YU safety sensor 101169807 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal BNS 333-01YU safety sensor 101169807 we can offer you a price of 141,23 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
