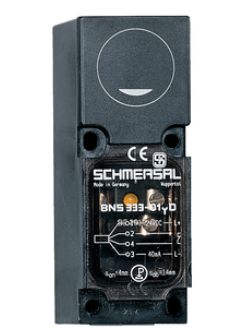

Schmersal BNS 333-01yD, Safety Sensor
|
143,38 EUR |
|||||||||||
|
( 170,62 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 298279 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101169806 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101169806:
The sensor features an integrated LED status indicator, facilitating the monitoring of the protective door position. Equipped with a switching element (1 NC contact) and a maximum switching current of 5 A, it guarantees high reliability with up to 20 million switching cycles. The BNS 333-01YD-M20 complies with the highest safety standards and is certified under EN ISO 13849-1.
Technical Data:
Ordering Details:
- Product Type: BNS 333-01YD-M20
- Part Number: 101169806
- EAN: 4030661296517
- eCl@ss Number: 27-27-44-01
- ETIM Number: EC002544
General Data:
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
- Coding Level: Low
- Operating Principle: Magnetic
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic
- Gross Weight: 150 g
Mechanical Data:
- Mounting Conditions: Quasi-flush
- Active Area: Cover side
- Switching Distances (ON/OFF): 4 mm / 14 mm
- Movement Direction: Frontal to active area
- Dimensions (L x W x H): 39 mm x 52 mm x 90 mm
Electrical Data:
- Max. Switching Voltage: 250 VAC
- Max. Switching Current: 5 A
- Max. Switching Power: 1,250 W
- Max. Ready Delay: 50 ms
- Max. Switching Frequency: 5 Hz
Environmental Conditions:
- Protection Class: IP65
- Ambient Temperature: -25 °C to +55 °C
- Shock Resistance: 30 g / 11 ms
Accessories:
- Recommended Actuators: BPS 300, BPS 303, BPS 303 SS
- Recommended Safety Control Units: SRB-E-301ST, SRB-E-201LC
Note:
- LED lights up when the protective door is closed.
- Actuator not included in delivery.
Type: BNS 333-01yD
Questions & answers
What is the delivery time of Schmersal BNS 333-01yD, Safety Sensor?
The article Schmersal BNS 333-01yD, Safety Sensor is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101169806 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 333-01yD, Safety Sensor always at the best possible price. We can give you a discount of 2% on Schmersal BNS 333-01yD, Safety Sensor if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal BNS 333-01yD, Safety Sensor we can offer you a price of 141,23 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
