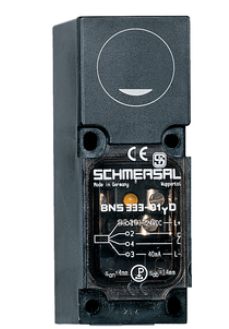

Schmersal BNS 333-01YR safety sensor 101169804
|
139,43 EUR |
|
|
( 165,92 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1128836 |
|---|---|
| Mfg Part No: | 101169804 |
| Weight: | 0 kg |
Product information for Schmersal 101169804:
Product Description in English:
The safety sensor BNS 333-01YR-M20 features a compact design, reliable magnetic operation, and an integrated status indicator. Ideal for machine and system control applications, the sensor offers coding that deters tampering and meets safety requirements in accordance with EN ISO 13849-1.
With an IP65 protection rating and a housing made of glass-fiber-reinforced thermoplastic, the sensor is suitable for demanding environments. Its maximum switching power of 1,250 W and long lifespan of up to 20 million switching cycles make it particularly robust and durable.
Technical Data:
Product Type Designation:
- BNS 333-01YR-M20
Order Number:
- 101169804
EAN:
- 4030661296494
eCl@ss Numbers:
- Version 12.0: 27-27-44-01
- Version 11.0: 27-27-24-02
- Version 9.0: 27-27-24-02
ETIM Numbers:
- Version 7.0: EC002544
- Version 6.0: EC002544
General Data:
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
- Operating Principle: Magnetic
- Coding Level: Low
- Housing Material: Glass-Fiber-Reinforced Thermoplastic
- Gross Weight: 145 g
Mechanical Data:
- Switching Distances: On 4 mm, Off 14 mm
- Connection: Screw Connection M20 x 1.5
- Dimensions: Length 39 mm, Width 52 mm, Height 90 mm
- Protection Class: IP65
- Lifespan: 20 Million Switching Cycles
Electrical Data:
- Max. Switching Voltage: 250 VAC
- Max. Switching Current: 5 A
- Max. Switching Power: 1,250 W
- Response Time: 50 ms
- Switching Frequency: Max. 5 Hz
Environmental Conditions:
- Operating Temperature: -25 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
Status Display:
- LED Indicator: Lights up when the protective door is closed.
Scope of Delivery:
- Actuator not included.
Accessories:
- Recommended Actuators: BPS 300, BPS 303, BPS 303 SS
- Recommended Safety Control Devices: SRB-E-301ST, SRB-E-201LC
Notes:
- Contact symbols are displayed when the protective door is closed.
Type: BNS 333-01YR
