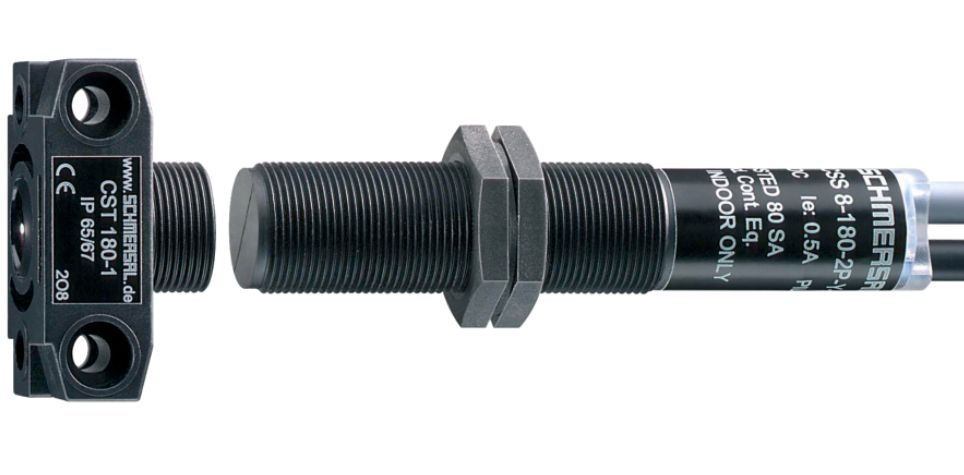

Schmersal CSS 8-180-2P+DE-LST safety sensor 101169553
|
305,53 EUR |
|||||||||||
|
( 363,58 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311736 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101169553 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101169553:
The sensor features two safe digital outputs and an additional diagnostic output. A multi-color LED displays the sensor's status in green, red, and yellow. The sensor has a low coding level according to EN ISO 14119 and is intended for use as an end or single device. The typical switching distance is 8 mm, with secured switching distances of 7 mm (ON) and 10 mm (OFF).
The housing is made of glass-fiber reinforced thermoplastic, ensuring robustness and durability. The sensor connects via a 5-pin M12 connector and operates at 24 VDC. With protection ratings of IP65 and IP65, it is suitable for industrial environments.
Technical Data:
Product Type:- CSS 8-180-2P+D-E-LST
Order Number:
- 101169553
EAN:
- 4030661295978
eCl@ss Numbers:
- Version 12.0: 27-27-46-01
- Version 11.0: 27-27-24-03
- Version 9.0: 27-27-24-03
ETIM Numbers:
- Version 7.0: EC001829
- Version 6.0: EC001829
Approvals:
- TÜV
- cULus
- UKCA
Standards:
- EN IEC 60947-5-3
- EN IEC 61508
Coding Level (EN ISO 14119):
- Low
Operating Principle:
- Inductive
Housing Shape:
- Cylinder, threaded
Mounting Conditions:
- Non-flush
Housing Material:
- Plastic, glass-fiber reinforced thermoplastic
Response Time, maximum:
- 30 ms
Gross Weight:
- 145 g
Switching Distances:
- Typical Switching Distance: 8 mm
- Secured Switching Distance ON Sao: 7 mm
- Secured Switching Distance OFF Sar: 10 mm
Connection Technology:
Safe Digital Outputs:
Diagnostic Output:
Status Indicator:
Pin Assignment:
Scope of Delivery:
Accessories:
Type: CSS 8-180-2P+D-E-LST
Questions & answers
What is the delivery time of Schmersal CSS 8-180-2P+DE-LST safety sensor 101169553?
The article Schmersal CSS 8-180-2P+DE-LST safety sensor 101169553 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101169553 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal CSS 8-180-2P+DE-LST safety sensor 101169553 always at the best possible price. We can give you a discount of 2% on Schmersal CSS 8-180-2P+DE-LST safety sensor 101169553 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal CSS 8-180-2P+DE-LST safety sensor 101169553 we can offer you a price of 300,95 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
