Schmersal 101167876 SE-T40
|
5,62 EUR 5,87 EUR |
|
|
( 6,69 EUR incl. VAT ) ≈ £4.77 | ≈ $6.33 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1345351 |
|---|---|
| Mfg Part No: | 101167876 |
| Weight: | 0.123 kg |
| Type: | SE-T40 |
Product information for Schmersal 101167876:

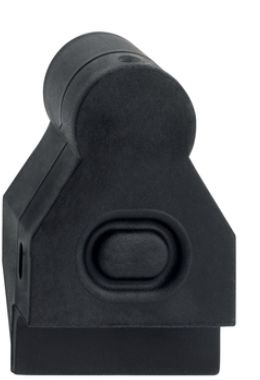

The SE-T40 End Cap from K.A. Schmersal GmbH & Co. KG is a high-quality closure solution for safety contact edges, providing optimal protection for rubber profiles against environmental influences. Made from durable EPDM rubber with a hardness of 65 Shore A, the end cap offers excellent ozone resistance and good resistance to acids. The cap comes in a black color and effectively protects the contact surfaces from dirt and damage.
The SE-T40 is particularly suitable for applications that require short-term temperature resistance up to 170 °C and long-term exposure up to 140 °C. It has good rebound elasticity at 20 °C and is mechanically resistant to permanent deformation. However, the material shows only low resistance to fuels, solvents, and oils.
With its compact dimensions of 25 mm in width and approximately 40 mm in height, the SE-T40 End Cap is easy to integrate into various safety systems. Weighing just 5 g, it is lightweight yet highly durable.
This end cap is ideal for use in harsh industrial environments, providing reliable sealing and protection for safety contact edges.
Product Type Designation:
eCl@ss Number:
The SE-T40 is particularly suitable for applications that require short-term temperature resistance up to 170 °C and long-term exposure up to 140 °C. It has good rebound elasticity at 20 °C and is mechanically resistant to permanent deformation. However, the material shows only low resistance to fuels, solvents, and oils.
With its compact dimensions of 25 mm in width and approximately 40 mm in height, the SE-T40 End Cap is easy to integrate into various safety systems. Weighing just 5 g, it is lightweight yet highly durable.
This end cap is ideal for use in harsh industrial environments, providing reliable sealing and protection for safety contact edges.
Technical Data (English):
Product Type Designation:
- SE-T40 END CAP
Item Number (Order Number):
- 101167876
EAN (European Article Number):
- 4030661294056
eCl@ss Number:
- Version 12.0: 27-27-34-91
- Version 11.0: 27-27-34-91
- Version 9.0: 27-27-34-91
ETIM Number:
- Version 7.0: EC002887
- Version 6.0: EC002887
General Data:
- Resistance to Permanent Deformation: Good
- Material Resistance (Acid): Good
- Rubber Profile Material: EPDM, 65 Shore A
- Contact Element Color: Black
- Gross Weight: 5 g
Mechanical Data - Dimensions:
- Width: 25 mm
- Height (Approx.): 40 mm
Environmental Conditions:
- Material Temperature Resistance (Short-Term): -50 ... +170 °C
- Material Temperature Resistance (Long-Term): -30 ... +140 °C
Chemical Resistance Notes:
- Material Resistance (Fuel): Low
- Material Resistance (Solvents): Low to Moderate
- Material Resistance (Oil): Low
- Material Resistance (Ozone): Excellent
- Material Resistance (Rebound Elasticity at 20 °C): Good
