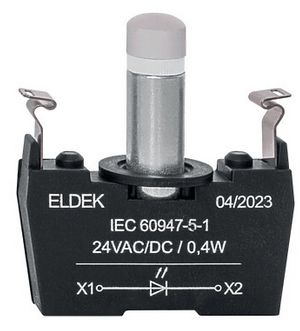

Schmersal ELDEKWS24 light element LED white spring clip 101167385
|
48,91 EUR |
|||||||||||
|
( 58,20 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331468 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101167385 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101167385:
The LED module ELDEKWS24 is a versatile indicator unit with an integrated white LED, designed for easy installation and reliable status indication in electrical systems. Its robust, self-extinguishing plastic housing makes it ideal for industrial applications. The spring clamp ensures quick and secure installation.
Technical Data:
Product Designation:
- ELDEKWS24
Article Number:
- 101167385
EAN:
- 4030661463780
eCl@ss Numbers:
- Version 12.0: 27-37-12-09
- Version 11.0: 27-37-12-09
- Version 9.0: 27-37-12-09
ETIM Numbers:
- Version 7.0: EC000204
- Version 6.0: EC000204
Approvals - Regulations:
- Certificates: cULus
- Standards: EN IEC 60947-5-1, EN IEC 60947-1
General Data:
- Design: LED Module
- Construction: Integrated LED
- Mounting Conditions (Mechanical): Arbitrary
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
- Gross Weight: 20 g
Features:
- Integrated Indicator: Yes
Mechanical Data:
- Mounting Instructions: Plug-on
- Mounting Flange Position: 3
Mechanical Data - Connection Technology:
- Connection Type: Spring Clamp Terminal
- Connection Standard: EN 50005, EN 50013
- Connection Cross-Section, Min./Max.: 2 x 0.08 mm² / 2 x 1.5 mm²
Mechanical Data - Dimensions:
- Length: 46 mm
- Width: 10 mm
- Depth: 51 mm
Environmental Conditions:
- Protection Class of Terminals/Connections: IP20
- Ambient Temperature: -25 ... +80 °C
Environmental Conditions - Insulation Ratings:
- Rated Insulation Voltage Ui: 440 V
Electrical Data:
- Rated Operating Voltage: 24 VAC / 24 VDC
- Contact Designation: X1 - X2
Status Indicator:
- LED Color: White
- Note (LED Status Indicator): Supply Voltage UB: 24 VAC/DC
Note:
Type: ELDEKWS24
