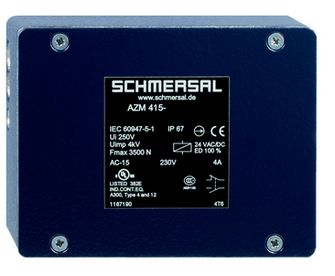

Schmersal AZM 415-11/11ZPKF 110VAC safety locking device 101167210
|
474,36 EUR |
|||||||||||
|
( 564,49 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1237115 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101167210 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101167210:
Product Description in English:
The AZM 415-11/11ZPKF 110VAC is an electromechanical safety switch featuring a robust aluminum housing with a durable coating for added protection. With a high retention force of 3,500 N and two safety contacts, this switch ensures maximum safety for various industrial applications. Operating on the closed-circuit principle, it is suitable for sliding or rotating protective devices.
The AZM 415-11/11ZPKF is rated IP67, offering excellent protection against dust and water, making it ideal for use in demanding environments. The mechanical lifespan is at least one million switching cycles, and the electrical performance supports applications for over 20 years. The switch includes a manually operated auxiliary release secured by a locking screw, which can be activated using a separately available M5 triangular key.
With screw terminals (M20 x 1.5) and flexible wiring options, the switch is easy to install. It supports a wide voltage range, including a rated control supply voltage of 110 VAC.
Technical Data:
Product Type Designation:
- AZM 415-11/11ZPKF 110VAC
Order Number:
- 101167210
EAN:
- 4030661218243
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
Approvals:
- cULus
- CCC
General Data:
- Standards: BG-GS-ET-19, EN IEC 60947-5-1
- Operating Principle: Electromechanical
- Housing Material: Aluminum, coated
- Gross Weight: 915 g
Mechanical Data:
- Lifespan: At least 1,000,000 switching cycles
- Retention Force: Up to 3,500 N
- Dimensions: 56.5 mm x 141 mm x 100 mm
Electrical Data:
- Thermal Continuous Current: 6 A
- Operating Voltage: 110 VAC
- Contact Elements: Normally Open (NO), Normally Closed (NC)
- Power Consumption: Maximum 10 W
Scope of Delivery:
- Locking screw with chain to prevent loss
- M5 triangular key available separately
Note:
- Auxiliary release can only be used after unlocking the locking screw.
- Suitable for sliding and rotating protective devices.
Type: AZM 415-11/11ZPKF 110VAC
Questions & answers
What is the delivery time of Schmersal AZM 415-11/11ZPKF 110VAC safety locking device 101167210?
The article Schmersal AZM 415-11/11ZPKF 110VAC safety locking device 101167210 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101167210 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 415-11/11ZPKF 110VAC safety locking device 101167210 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 415-11/11ZPKF 110VAC safety locking device 101167210 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 415-11/11ZPKF 110VAC safety locking device 101167210 we can offer you a price of 467,24 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
