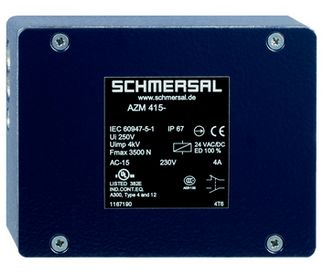

Schmersal AZM 415-11/11ZPK 24VAC/DC safety locking device 101167205
|
448,87 EUR |
|||||||||||
|
( 534,16 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 376063 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101167205 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101167205:
With an IP67 protection rating and an operating temperature range of -25 °C to +50 °C, it is suitable for demanding environments. The AZM 415 includes two safety contacts and two auxiliary contacts, integrated into a screw connection (M20 x 1.5), and supports cable cross-sections from 0.75 mm² to 2.5 mm². Offering a mechanical lifespan of at least 1,000,000 operating cycles and a service life of 20 years, this interlock ensures long-term reliability.
The device complies with EN ISO 13849-1 and EN IEC 60947-5-1 standards and is certified by cULus and CCC, underlining its high quality and safety. It is ideal for industrial applications where safety and robustness are essential.
Technical Data:
Ordering Details:
- Product Type: AZM 415-11/11ZPK 24VAC/DC
- Part Number: 101167205
- EAN: 4030661218199
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
Approvals:
- Certifications: cULus, CCC
- Standards: BG-GS-ET-19, EN IEC 60947-5-1
General Data:
- Operating Principle: Electromechanical
- Housing Material: Aluminum, painted
- Gross Weight: 1,000 g
Safety Features:
- Closed-Circuit Principle: Yes
- Safety Contacts: 2
- Auxiliary Contacts: 2
- Service Life: 20 years
- B10D Value (NC): 2,000,000 operating cycles
Mechanical Properties:
- Mechanical Lifespan: min. 1,000,000 operating cycles
- Holding Force: 3,500 N
- Latching Force: 150 - 400 N
- Actuation Speed: max. 0.2 m/s
- Connection Type: Screw connection M20 x 1.5
- Cable Cross-Section: 0.75 mm² to 2.5 mm²
- Dimensions (LxWxH): 46.5 x 130 x 100 mm
Electrical Properties:
- Rated Voltage: 24 VAC/DC
- Continuous Current: 6 A
- Contact Material: Silver
- Power: max. 10 W
Environmental Conditions:
- Protection Rating: IP67
- Operating Temperature: -25 °C to +50 °C
Applications:
- Sliding or rotating safety guards
Type: AZM 415-11/11zpk 24V
Questions & answers
What is the delivery time of Schmersal AZM 415-11/11ZPK 24VAC/DC safety locking device 101167205?
The article Schmersal AZM 415-11/11ZPK 24VAC/DC safety locking device 101167205 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101167205 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 415-11/11ZPK 24VAC/DC safety locking device 101167205 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 415-11/11ZPK 24VAC/DC safety locking device 101167205 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 415-11/11ZPK 24VAC/DC safety locking device 101167205 we can offer you a price of 442,14 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
