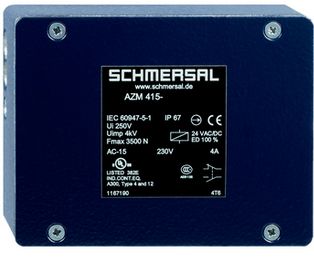

Schmersal AZM 415-11/11zpk 230 VAC safety locking device 1167204

The AZM 415-11/11ZPK 230VAC is a robust electromechanical safety switch with a locking function, designed specifically for securing sliding and rotating protective guards. Operating on the closed-circuit principle, the locking mechanism releases when the power supply is interrupted, ensuring that the protective guard can be opened in case of a power failure.

The switch housing is made of high-quality aluminum, coated for added protection. The switch provides a high locking force of 3,500 N in accordance with EN ISO 14119, making it ideal for use in safety-critical applications. With a protection rating of IP67, the device is dust-tight and resistant to temporary water immersion, ensuring reliable operation even in harsh industrial environments.

The AZM 415 features two safety contacts and two auxiliary contacts. The switching mechanism is a slow-action system with positive-opening contacts, ensuring reliable disconnection even in case of mechanical failure. The switch meets the safety requirements of EN ISO 13849-1 and has a mechanical lifespan of at least 1 million switching cycles.

With its screw terminal connection (M20 x 1.5) and a generous cross-section range of 2 x 0.75 mm² to 2 x 2.5 mm², the device is easy to install.
Technical Data – AZM 415-11/11ZPK 230VAC:

Order Information:

Product Type Designation: AZM 415-11/11ZPK 230VAC
Article Number: 101167204
EAN: 4030661218182

Approvals and Certificates:

cULus
CCC

Standards:

BG-GS-ET-19
EN IEC 60947-5-1

Material and Weight:

Housing Material: Aluminum
Housing Coating: Painted
Gross Weight: 905 g

Features:

Closed-Circuit Principle: Yes
Number of Approach Directions: 1
Number of Safety Contacts: 2
Number of Auxiliary Contacts: 2
Number of Protective Doors: 1

Safety Consideration:

Standards: EN ISO 13849-1
Service Life: 20 years

Mechanical Data:

Mechanical Lifespan, Min.: 1,000,000 switching cycles
Locking Force (FZh) per EN ISO 14119: 3,500 N
Latching Force, Min.: 150 N
Latching Force, Max.: 400 N
Positive Opening Distance: 5 mm
Positive Opening Force, Min.: 15 N
Max. Actuation Speed: 0.2 m/s

Mechanical Data – Connection Technology:

Connection Type: Screw Terminal M20 x 1.5
Cross-Section, Min.: 2 x 0.75 mm²
Cross-Section, Max.: 2 x 2.5 mm²

Mechanical Data – Dimensions:

Sensor Length: 46.5 mm
Sensor Width: 130 mm
Sensor Height: 100 mm

Environmental Conditions:

Protection Rating: IP67
Operating Temperature: -25 to +50 °C
Relative Humidity: Non-condensing, non-icing

Insulation Ratings:

Rated Insulation Voltage (Ui): 250 VAC
Rated Impulse Withstand Voltage (Uimp): 4 kV

Electrical Data:

Thermal Continuous Current: 6 A
Rated Control Supply Voltage: 230 VAC
Voltage (AC-15): 230 VAC
Current (AC-15): 4 A
Voltage (DC-13): 24 VDC
Current (DC-13): 1 A
Max. Power Consumption: 10 W

Switching Elements:

Contacts: Normally Open (NO), Normally Closed (NC)
Switching Principle: Slow-Action Switching
Contact Material: Silver

Application Areas:

Sliding Protective Guards
Rotating Protective Guards
Type: AZM 415-11/11ZPK 230VAC
