Schmersal NWTS32.1 Selector button right button. race left. Toggle gray 101164757
|
42,28 EUR |
|||||||||||
|
( 50,31 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1332657 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101164757 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101164757:

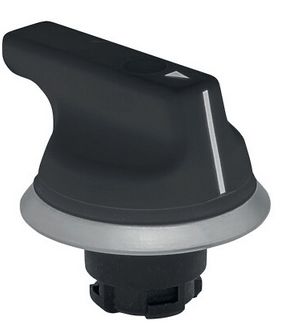

The NWTS32.1 selector switch with a long lever is a reliable control element for industrial applications. It features a robust construction and ergonomic design. With three switching positions and the possibility of momentary action, it offers versatile functionality. Made from high-quality ABS material with a chrome-plated bezel, it provides full insulation. Thanks to its IP67 and IP69K protection ratings, the switch is well-protected against dust, water, and high-pressure cleaning. Easy installation with the EFM mounting flange makes the NWTS32.1 a flexible and durable solution for demanding environments.
Technical Data:
Product Designation:- NWTS32.1
Article Number:
- 101164757
EAN:
- 4250116200276
Certifications and Standards:
- cULus
- Hygiene certified
- EN IEC 60947-5-1, EN IEC 60947-1
Design:
- Selector switch
Shape:
- Long lever
Materials:
- Operating Element: ABS
- Bezel: ABS, chrome-plated
Colors:
- Operating Element: Black
- Bezel: Silver
- Sealing Bellows: Black
Gross Weight:
- 35 g
Features:
- Momentary Action Possible: Yes
- Full Insulation: Yes
- Number of Actuators: 2
- Number of Switching Positions: 3
- Maximum Number of Contact Elements: 2
Mechanical Data:
- Release: Rotary release
- Mechanical Lifespan: min. 100,000 cycles
- Switching Angle: - Left: 35°
- Actuation Force: approx. 0.2 N
- Mounting: Mounting flange EFM
- Screw Tightening Torque: 0.6 Nm
- Right: 55°
Dimensions:
- Height: 26 mm
- Operating Head Diameter: 44.5 mm
- Lever Length: 46 mm
- Mounting Hole Diameter: 22.3 mm
- Front Panel Thickness: 1.5 mm to 6 mm
- Grid Dimension: 50 x 60 mm
Environmental Conditions:
- Protection Class: IP67, IP69K
- Ambient Temperature: 0 °C to +80 °C
- Shock Resistance: 30 g / 18 ms
- Vibration Resistance: 20 g / 10 ... 150 Hz
Type: NWTS32.1
Questions & answers
What is the delivery time of Schmersal NWTS32.1 Selector button right button. race left. Toggle gray 101164757?
The article Schmersal NWTS32.1 Selector button right button. race left. Toggle gray 101164757 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101164757 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal NWTS32.1 Selector button right button. race left. Toggle gray 101164757 always at the best possible price. We can give you a discount of 2% on Schmersal NWTS32.1 Selector button right button. race left. Toggle gray 101164757 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal NWTS32.1 Selector button right button. race left. Toggle gray 101164757 we can offer you a price of 41,65 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
