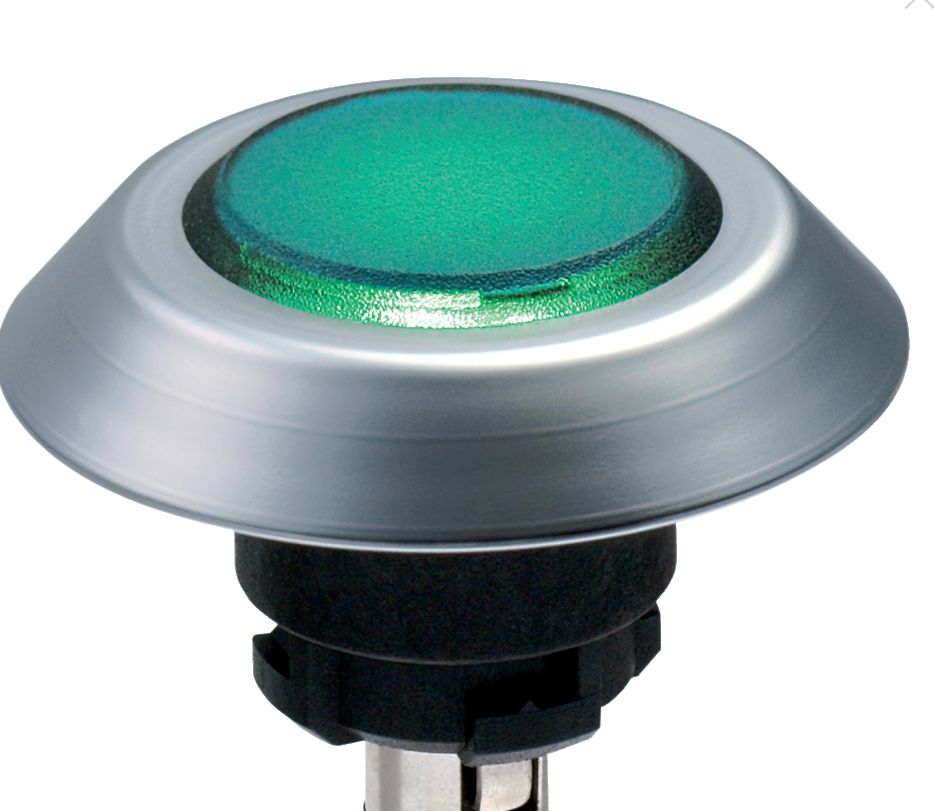

Schmersal 101163602 NMEFGN indicator light LED round flat green
|
63,35 EUR 66,11 EUR |
|
|
( 75,39 EUR incl. VAT ) ≈ £53.21 | ≈ $71.08 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1332685 |
|---|---|
| Mfg Part No: | 101163602 |
| UPC/EAN: | 4250116200597 |
| Weight: | 0.123 kg |
| Type: | NMEFGN |
Product information for Schmersal 101163602:
The indicator light NMEFGN is a high-quality and versatile signaling device specifically designed for front panel mounting. Featuring a flat green cap and a chrome-plated silver bezel, it combines functionality with an appealing design. With IP67 and IP69K protection ratings, it is resistant to dust, dirt, and high-pressure water jets, making it ideal for demanding industrial environments. The indicator is designed for temperatures ranging from -25 °C to +80 °C and includes an integrated status display for 24 VAC/DC. Its full insulation ensures additional safety.
Technical Data:
Product Designation:- NMEFGN
Article Number:
- 101163602
EAN:
- 4250116200597
Certifications and Standards:
- cULus
- Hygiene certified
- EN IEC 60947-5-1, EN IEC 60947-1
Design:
- Indicator light, front panel mounting
Shape:
- Round, flat cap
Materials:
- Cap: PA (12)
- Bezel: ABS, chrome-plated
Colors:
- Cap: Green
- Bezel: Silver
Gross Weight:
- 50 g
Mechanical Data:
- Mounting Flange: Mounting flange ELM
- Screw Tightening Torque: 0.6 Nm
Dimensions:
- Overall Diameter: 44.5 mm
- Cap Height: 2 mm
- Cap Diameter: 26 mm
- Bezel Diameter: 44.5 mm
- Mounting Hole Diameter: 22.3 mm
- Front Panel Thickness: 1.5 mm to 6 mm
- Grid Dimension: 50 x 50 mm
Environmental Conditions:
- Protection Class: IP67, IP69K
- Ambient Temperature: -25 °C to +80 °C
- Shock Resistance: 30 g / 18 ms
- Vibration Resistance: 20 g / 10 ... 150 Hz
Status Indicator:
- Illuminable: Yes, for 24 VAC/DC
Scope of Delivery:
- Mounting Flange ELM (Article Number 1014387)
Note:
- A specific light element is required for other input voltages.
- Technical changes and errors reserved.
