Schmersal NDLGB illuminated button green/white 101163545

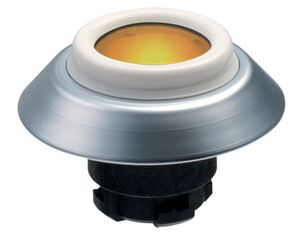

The NDLGB illuminated pushbutton for panel mounting is a functional and aesthetic solution for industrial applications. Its yellow button face provides clear visibility. With robust construction, hygienic materials, and IP69K protection, it is suitable for demanding environments.

Technical Data:

Product Designation:

• NDLGB

Article Number:

• 101163545

EAN:

• 4250116200467

eCl@ss Numbers:

• Version 12.0: 27-37-12-10
• Version 11.0: 27-37-12-10
• Version 9.0: 27-37-12-10

ETIM Numbers:

• Version 7.0: EC000221
• Version 6.0: EC000221

Approvals - Regulations:

• Certificates: cULus, Hygiene Approved
• Regulations: EN IEC 60947-5-1, EN IEC 60947-1

General Data:

• Design: Panel mounting, illuminated pushbutton
• Form: Round, momentary
• Installation Conditions (Mechanical): Arbitrary
• Sealing Type: Lip Seals
• Operating Material: Plastic
• Front Ring Material: ABS, chrome-plated
• Button Color: Yellow
• Front Ring Color: Silver
• Sealing Bellow Color: White
• Gross Weight: 30 g

General Data - Features:

• Illuminable: Yes
• Mounting Flange: Yes
• Momentary Operation: Yes
• Full Insulation: Yes
• Maximum Number of Contact Elements: 2

Mechanical Data:

• Release: None
• Mechanical Lifetime, Min.: 1,000,000 operations
• Actuation Travel: 5 mm
• Actuation Force, Approx.: 1.5 N
• Mounting: Central Nut
• Screw Tightening Torque: 0.6 Nm

Mechanical Data - Dimensions:

• Height: 11 mm
• Installation Height: Height above panel
• Overall Diameter: 44.5 mm
• Button Diameter: 27 mm
• Front Ring Diameter: 44.5 mm
• Installation Diameter: 22.3 mm
• Panel Thickness, Min.: 1.5 mm
• Panel Thickness, Max.: 6 mm
• Grid Dimension: 50 x 50 mm

Environmental Conditions:

• Protection Rating: IP69K
• Ambient Temperature: -25 ... +80 °C
• Shock Resistance: 30 g / 18 ms
• Vibration Resistance: 20 g / 10 ... 150 Hz

Electrical Data:

• Maximum Switching Frequency: 1,000 /h

Type: NDLGB
