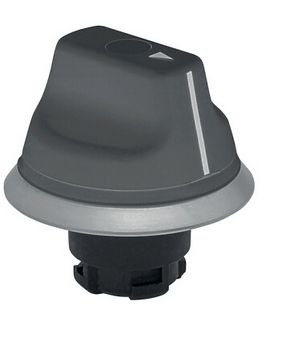

Schmersal NWS21 selector switch 2 pieces. Right locking toggle gray 101163541

Schmersal Selector Switch NWS21GR

Order Details:

• Product Type Designation: NWS21GR
• Article Number (Order Number): 101163541
• EAN (European Article Number): 4250116200337
• eCl@ss Number, Version 12.0: 27-37-12-13
• eCl@ss Number, Version 11.0: 27-37-12-13
• eCl@ss Number, Version 9.0: 27-37-12-13
• ETIM Number, Version 7.0: EC000222
• ETIM Number, Version 6.0: EC000222

Approvals and Regulations:

• Certificates: cULus, Hygiene Certified
• Standards:
- EN IEC 60947-5-1
- EN IEC 60947-1


General Data:

• Design: Selector switch
• Construction: Short toggle
• Mounting conditions (mechanical): Arbitrary
• Sealing type:
- Membrane
- Lip seals

• Material of operating part: ABS
• Material of front ring: ABS, chrome-plated
• Color of operating part: Black
• Color of front ring: Silver
• Color of sealing bellows: Black
• Gross weight: 35 g

General Features:

• Latching: Yes
• Full insulation: Yes
• Number of plungers: 1
• Number of switch positions: 2
• Maximum number of contact elements: 3

Mechanical Data:

• Release: Rotational release
• Minimum mechanical lifespan: 100,000 switching cycles
• Switching angle, right: 70°
• Actuation force, approx.: 0.2 N
• Mounting: EFM mounting flange
• Screw tightening torque: 0.6 Nm

Mechanical Dimensions:

• Height: 11 mm
• Diameter of operating head: 44.5 mm
• Length of toggle: 28 mm
• Installation diameter: 22.3 mm
• Front plate thickness:
- Minimum: 1.5 mm
- Maximum: 6 mm

• Grid size: 50 x 50 mm

Environmental Conditions:

• Protection rating: IP67, IP69K
• Ambient temperature: +0 ... +80 °C
• Shock resistance: 30 g / 18 ms
• Vibration resistance: 20 g / 10 ... 150 Hz

Electrical Data:

• Switching element: Switching

Note:

The specified data has been carefully verified. Images may differ from the original. Further technical details can be found in the operating instructions. Technical changes and errors are subject to change.

Generated on: 21.12.2024, 12:35
Type: NWS21GR
